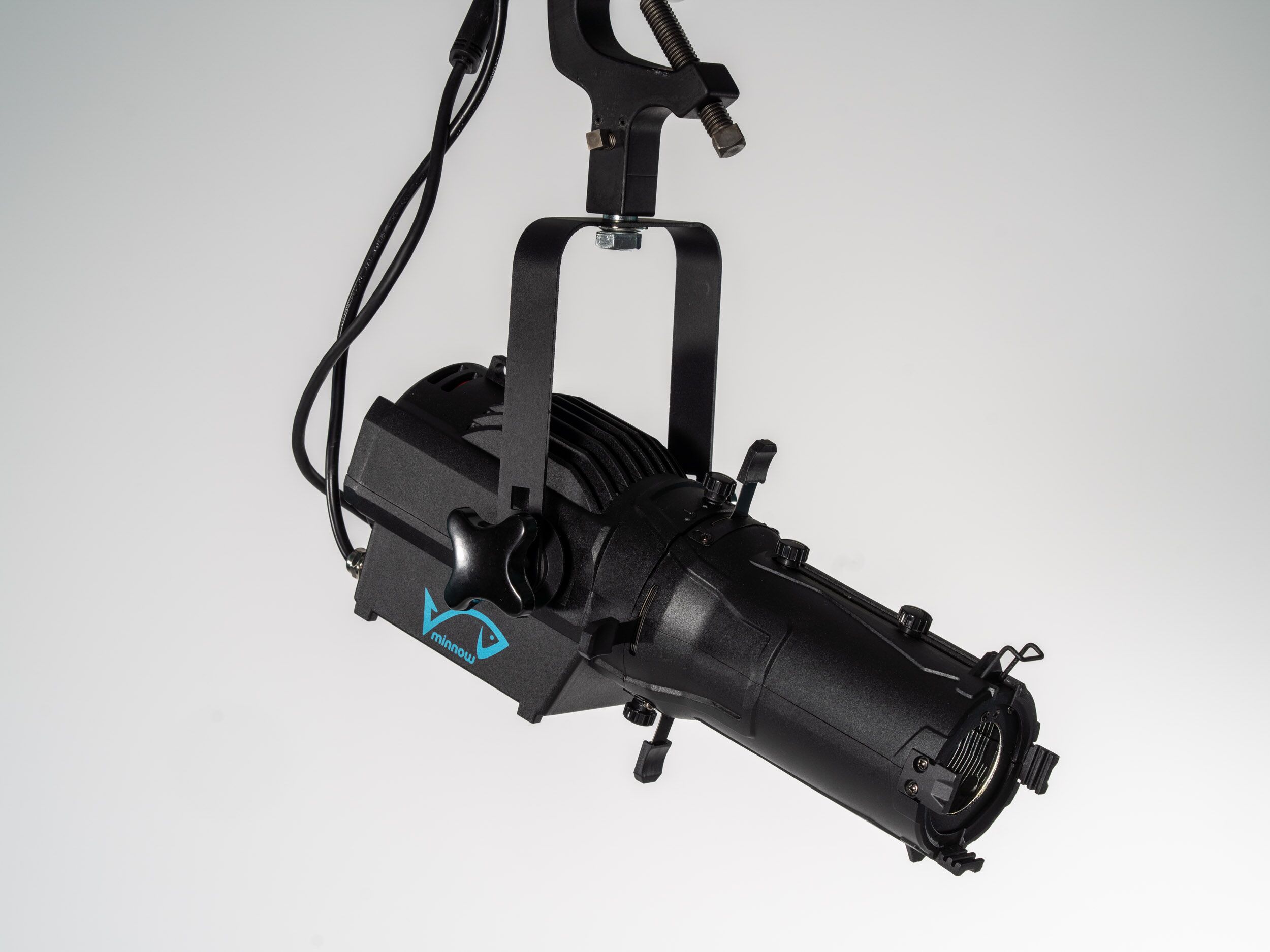

Minnow-5 LED Studio Light Fixture

The Minnow profile spotlight covers a short throw with precision and finesse. It’s the ideal choice for key and accent lighting, ensuring that your subjects are lit flawlessly in any studio setting. Whether you’re working on a close-up shot or need to highlight specific details, Minnow delivers unmatched performance.

At the heart of the Minnow’s capabilities is its compact zoom lens, enabling seamless and continual adjustment to achieve the desired beam size. With this level of control, you can easily customize the lighting to suit various shooting scenarios.

The Minnow profile spotlight features a noise-free, fan-less LED design with an integrated robust die-cast aluminum alloy housing, ensuring optimal durability and longevity. This robust construction guarantees that the Minnow can withstand the rigors of continuous use, making it a reliable and cost-effective investment.

The Minnow/2 features two-color variable white lighting with settings ranging from 32>56. The Minnow/5 emits light in red, green, blue, amber and lime.

Both the Mako and Minnow profile spotlights are well suited for a variety of applications, including broadcast studios, production studios, and large and mid-sized presentation rooms.

Light Source

• 60F-RGBAL Model: 1 x 60-watt 5-in-1 LED (RGBAL)
• 100D-VW Model: 1 x 100-watt 2-in-1 LED (3200K – 5600K)
• CRI ≥95+
• Flicker free operation for broadcast TV and film
• Life Span: 50,000-hour (chip rating may vary depending on several factors including, but not limited to: environmental conditions, power/voltage supply, usage pattern (on-off cycling), control and dimming)

Optics

• Manual high-resolution and precise optic zoom function adjust beam angle from 15° to 30°
• 45° rotatable lens tube
• Manual focus

Framing System

• 4 metal spot cutting slots

Color System

• 60F-RGBAL Model: RGBAL color mixing – pure and even coverage
• Color frame included with all models

Gobo and IRIS System

• Gobo holder included

Dimming System

• 0-100% smooth linear LED dimming

Power Supply

• Electronic supply with active Power Factor Correction (PFC)
• AC100-240V 50/60 Hz
• 9-feet Power IN with fuse and ON/OFF Switch 60-watt power consumption

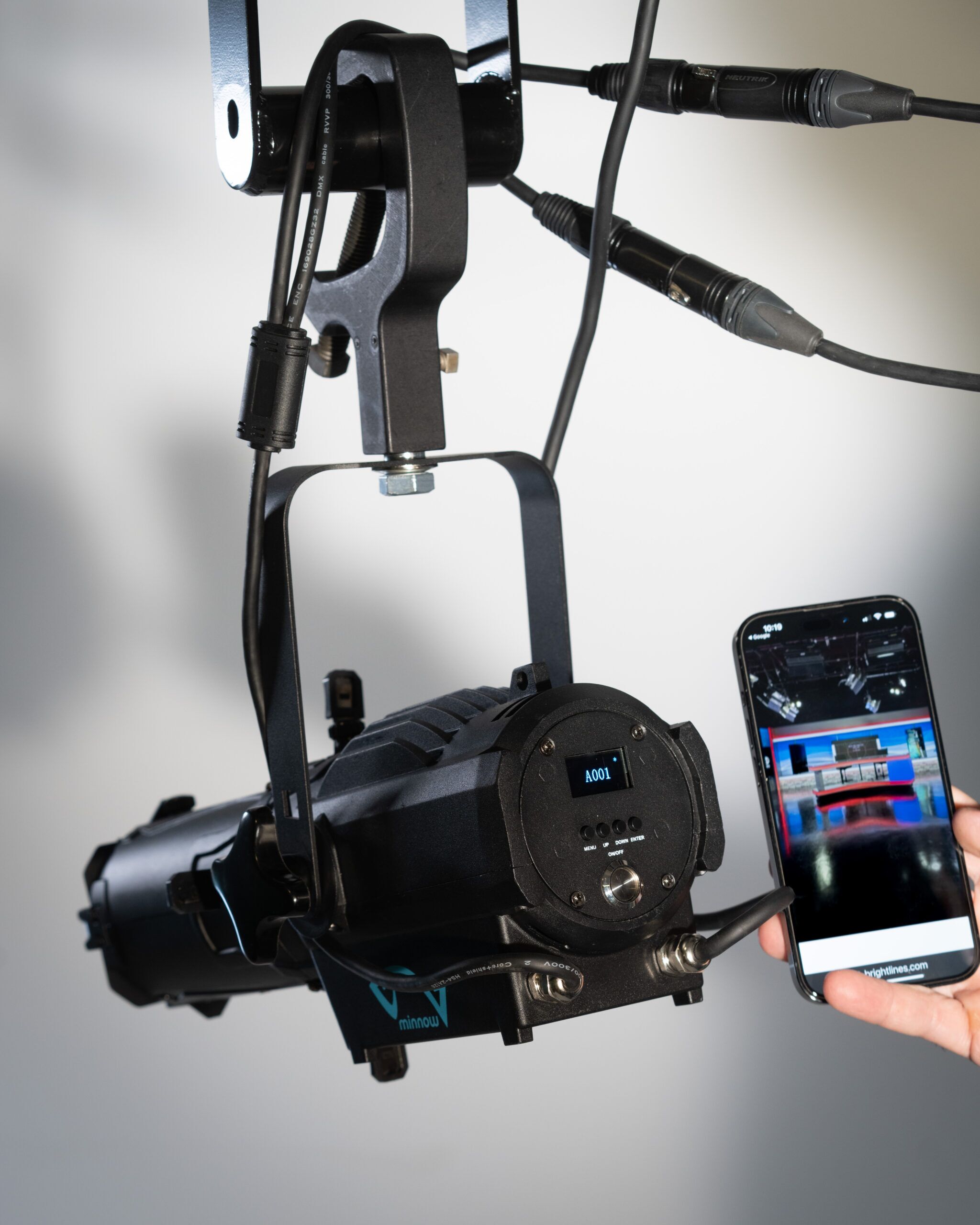

Control System

• 60F-RGBAL Model: 7 DMX channels – Remote Device Management (RDM) enabled
• 100D-VW Model: Two 2-in-1 DMX channels – RDM enabled
• DMX512, In/Out or auto operation DMX recorder and edit function integrated
• Shielded input signal protection for stable signal without interference
• 5-pin XLR DMX connectors In/Out

Cooling System

• Advanced cooling fan-less system, aluminum heat sink with integrated copper heat pipe
• Efficient noise-free cooling system
• Constant temperature readout and management function with integrated thermal protection cut-off switch

Housing

• Die-cast aluminum alloy with powder coat body

Installation

• Single slide-adjust hanging bracket with safety attachment point

Operating Condition

• -25°C to 45°C ambient temperature
• IP20 protection

Compliance

• CE + FCC
• 2014/35/EU Safety of electrical equipment supplied at low voltage (L VD)
• 2014/30/EU Electromagnetic compatibility (EMC)
• 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Unit and Pack Weight
• N.W.: 6.4 lbs. (2.9 kg) G.W.: 7.8 lbs. (3.5 kg)

Unit and Pack Dimensions

  • Product Dimensions (L x W x H): 14” (356mm) x 6.75” (171mm) x 8.5” (216mm)
  • Packing Dimensions (L x W x H): 18.0” (457mm) x 9.25” (235mm) x 8.75” (222mm)
