SeriesONE L1.4 LED Studio Fixture

The Brightline L1.4 is a DMX-controlled, energy-efficient LED light fixture. This fixture combines digital electronics with a state-of-the-art optical system to produce a soft, full-spectrum, flicker-free light source.

The L1.4 features excellent color rendering and variable white color temperature. With a range of wireless, remote, and on-board DMX dimming options, the L1.4 is a durable workhorse in studio packages.

Construction

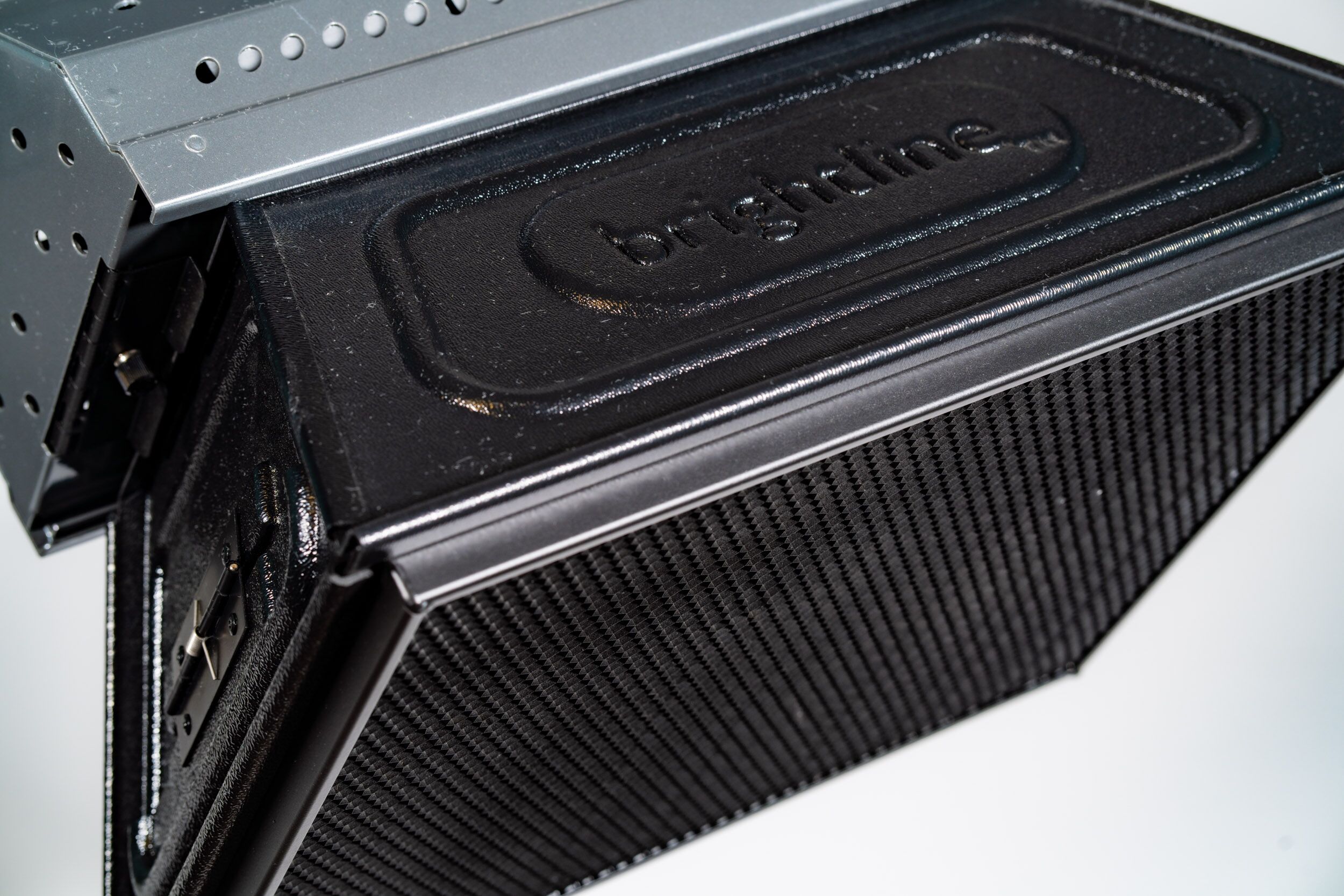

14-gauge formed aluminum sheet metal construction. Heat sink is made of aluminum extrusion. The driver can be serviced without removing the light engine.

Fixture Body Finish

Metallic steel gray finish is standard, with custom colors available.

Electrical

A removable 12-ft (3.7-m) power cord with a NEMA 5-15P plug is standard. Other plug types are available as options. The fixture is protected by an externally removable fuse with onboard spare. Power draw is 240 watts.

Drivers

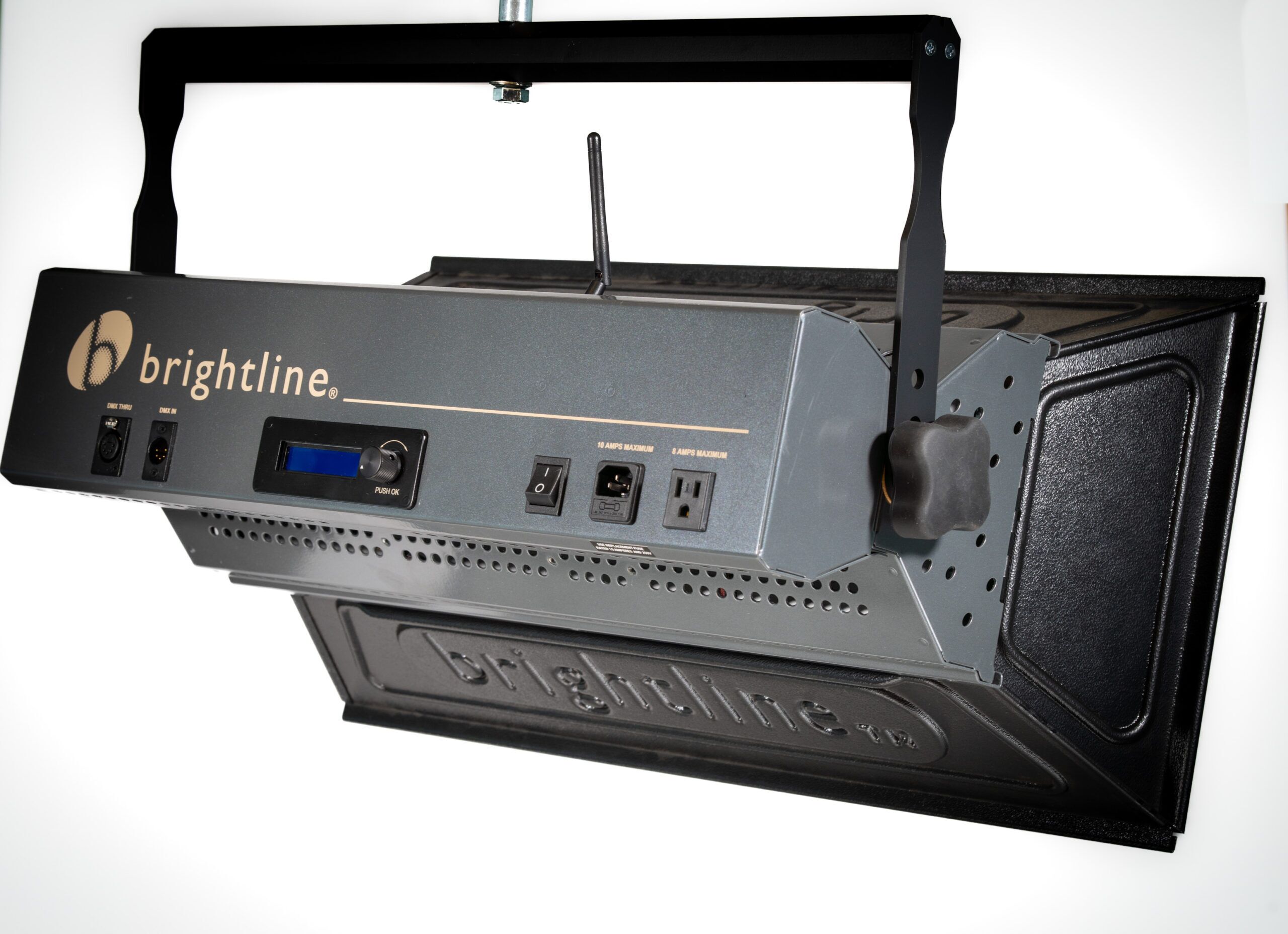

All LED Drivers are high-frequency electronic, with a power factor >.94, THD <10%, and a Class A sound rating. LED Drivers are mounted internally to the fixture housing. The power and control inputs are on the back. The dimming protocol is DMX/RDM.

LED Technology

The fixture utilizes high CRI LEDs to emit high quality illumination (>97 CRI) for broadcast and videoconferencing applications. Variable CCT from 3200K - 5600K.

Mounting

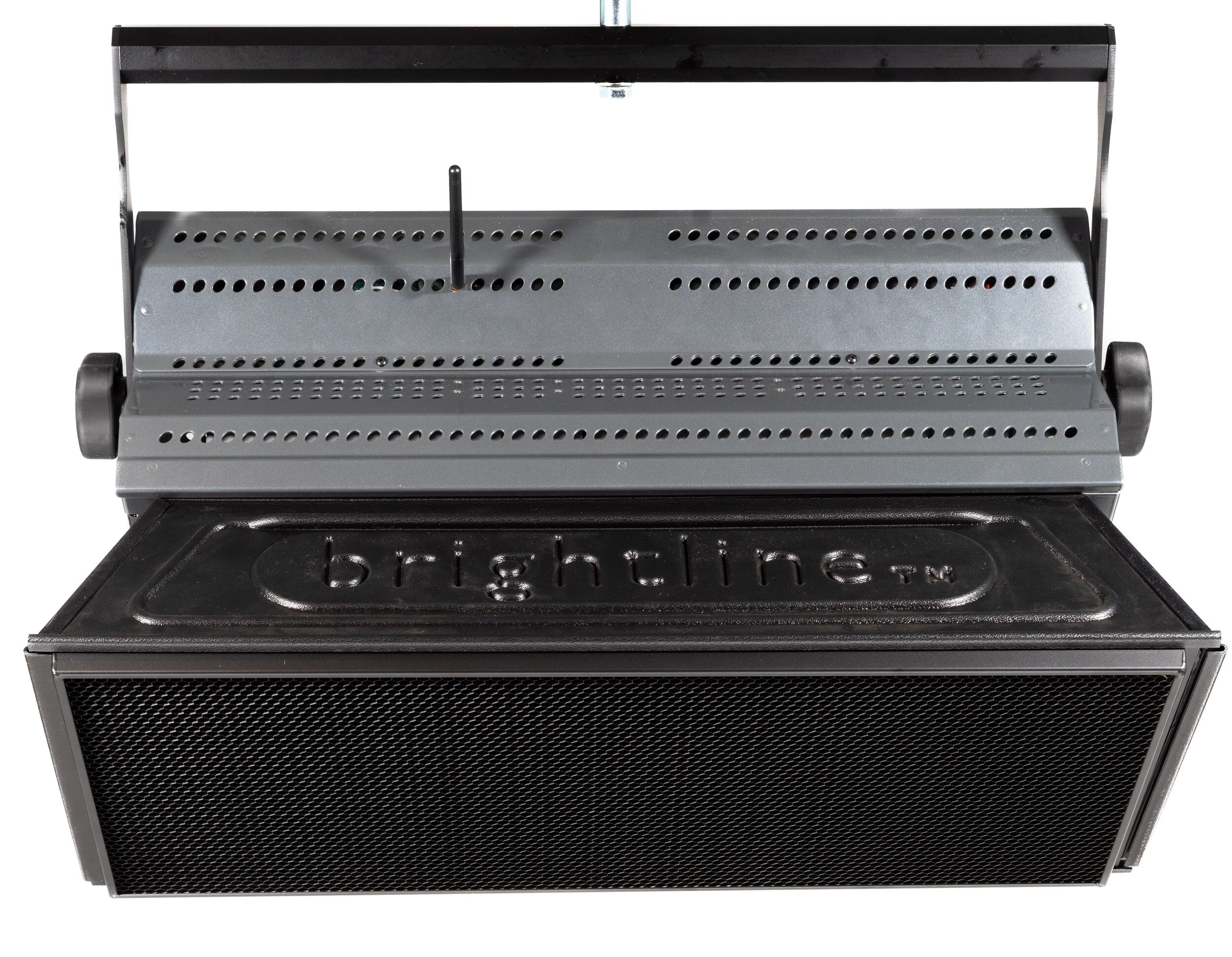

Fixture has a 10-gauge horizontal or vertical extruded aluminum yoke, with palm handles standard. Each fixture is supplied with a 2-inch OD C-clamp with an integral safety cable. Compact yoke also available.

Accessories

A variety of accessories are available. Black finish on accessories is standard, with custom color available on request.

Fixture Dimensions and Weight

24.27in (616.50mm) wide x 12.49in (317.16mm) high x 9.12in (263.41mm) deep. Overall width of the fixture increases to 27.51in (698.63-mm), with the palm handles included. Fixture Weight is 25lb (11.3kg)
