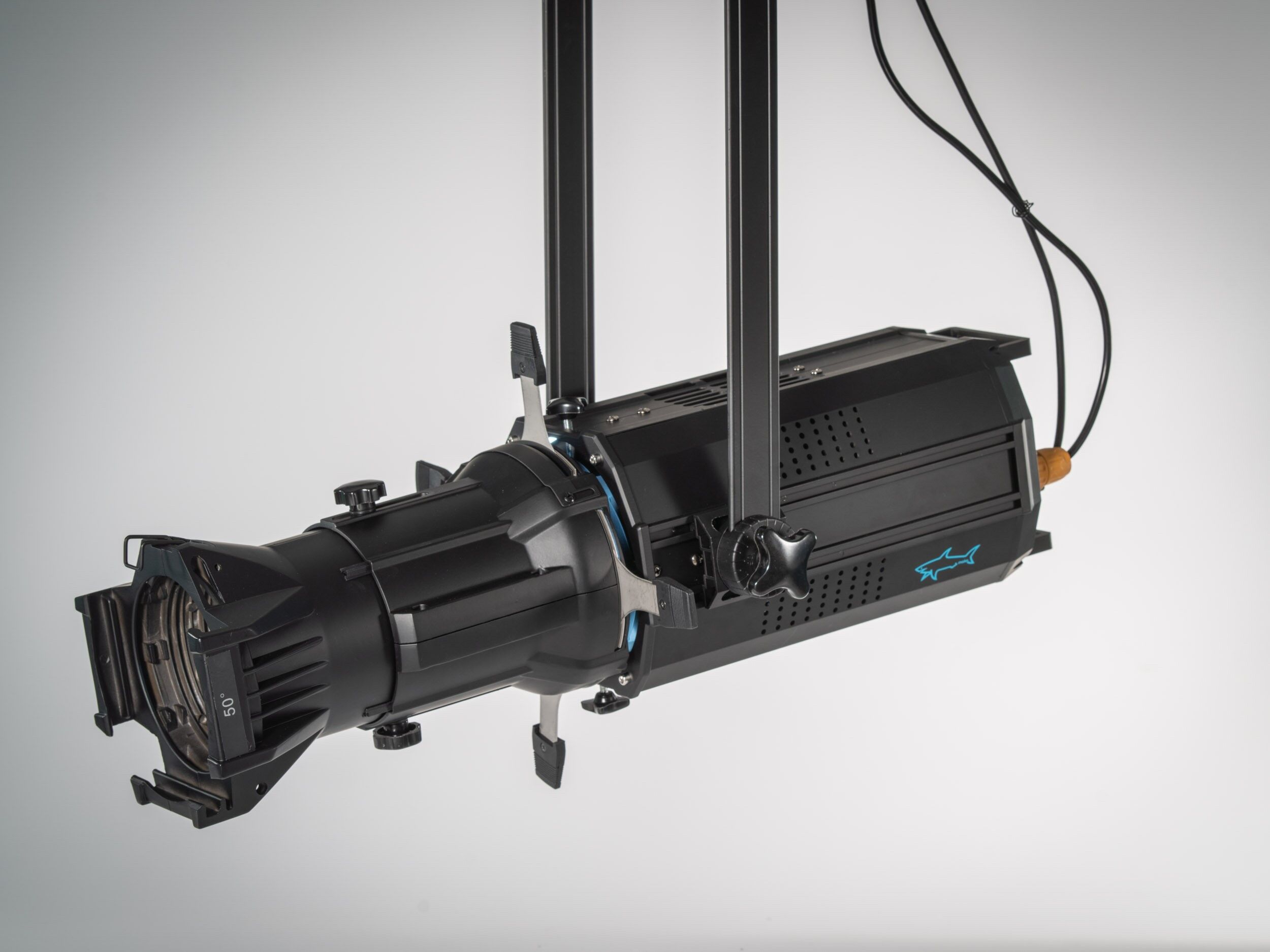

Mako/2 Variable White Ellipsoidal LED Light

The Mako profile spotlight uses interchangeable, prime lenses and is designed for longer throws within large rooms or studios. Used for more focused and shaped lighting, the Mako emits a powerful and uniform light output, ensuring that subjects are illuminated with stunning precision and clarity. This superior brightness gives you the confidence to capture every detail flawlessly.

The Mako/2 features two-color variable white lighting with settings ranging from 32>56.

Both the Mako and Minnow profile spotlights offer noise-free, fanless conduction cooling and are available in tunable Variable White and RBGAL (Red, Green, Blue, White) versions.

With its exceptional brightness, silent operation, advanced dimming capabilities, precise beam control, and rugged construction, the Mako outshines the competition. Illuminate your studio with a Mako spotlight and experience lighting excellence like never before.

Light Source

• 150F-RGBAL Model: 1 x 150-watt 5-in-1 LED (RGBAL)
• 150D-VW Model: 1 x 150-watt 2-in-1 LED (3200K – 5600K)
• CRI ≥95+
• Flicker free operation for broadcast TV and film
• Life Span: 50,000-hour (chip rating may vary depending on several factors including, but not limited to: environmental conditions, power/voltage supply, usage pattern (on-off cycling), control and dimming)


• Interchangeable high-resolution and precise optics 5°/10°/19°/26°/36°/50° lens tubes available
• 45° rotatable lens tube
• Manual focus
• Compatible with other lens tube manufacturers (consult Brightline for list of compatibility options)

Framing System

• 4 metal spot cutting slots

Color System

• 150F-RGBAL Model: RGBAL color mixing – pure and even coverage
• Color frame included with all models

Preset Programs 150F-RGBAL only

• 8 preset colors – built in dynamic programs

Gobo and IRIS System

• Gobo holder (size B) included
• IRIS sold separately

Dimming System

• 0-100% smooth linear LED dimming
• 4 preprogrammed dimming curve modes (linear, square law, inverse square law, and s-curve) available

Power Supply

• Electronic supply with active Power Factor Correction (PFC)
• AC100-240V 50/60 Hz
• Power CON IN/OUT with fuse
150-watt power consumption

Control System

• 150F-RGBAL Model: 7 DMX channels – Remote Device Management (RDM) enabled
• 150D-VW Model: Two 2-in-1 DMX channels – RDM enabled
• DMX512, In/Out or auto operation DMX recorder and edit function integrated
• Shielded input signal protection for stable signal without interference
• 5-pin XLR DMX connectors In/Out

Cooling System

• Advanced cooling fan-less system, aluminum heat sink with integrated copper heat pipe
• Efficient noise-free cooling system
• Constant temperature readout and management function with integrated thermal protection cut-off switch


• Die-cast aluminum alloy with powder coat body


• Single slide-adjust hanging bracket with safety attachment point

Operating Condition

• -25°C to 45°C ambient temperature
• IP20 protection


• CE + FCC
• 2014/35/EU Safety of electrical equipment supplied at low voltage (L VD)
• 2014/30/EU Electromagnetic compatibility (EMC)
• 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)

Unit and Pack Weight

• N.W.: 21.8 lbs. (9.9 kg) G.W.: 25.4 lbs. (11.5 kg)

Unit and Pack Dimensions

• Product Dimensions (L x W x H): 26.8” (680mm) x 12.4” (315mm) x 12.2” (310mm)
• Packing Dimensions (L x W x H): 29.5” (750mm) x 13.8” (350mm) x 13.6” (345mm)

"The audio folks will love that the Mako and Minnow profile spotlight LEDS are conduction/convection cooled rather than fan. They are an excellent choice for television studios and theaters, not to mention the benefit of not drawing dust into the fixture. A much better choice for keeping the optics and works clean."

Bruce Aleksander, Lighting Director/Lighting Designer
