MOD1
Precision Lighting Where It Matters

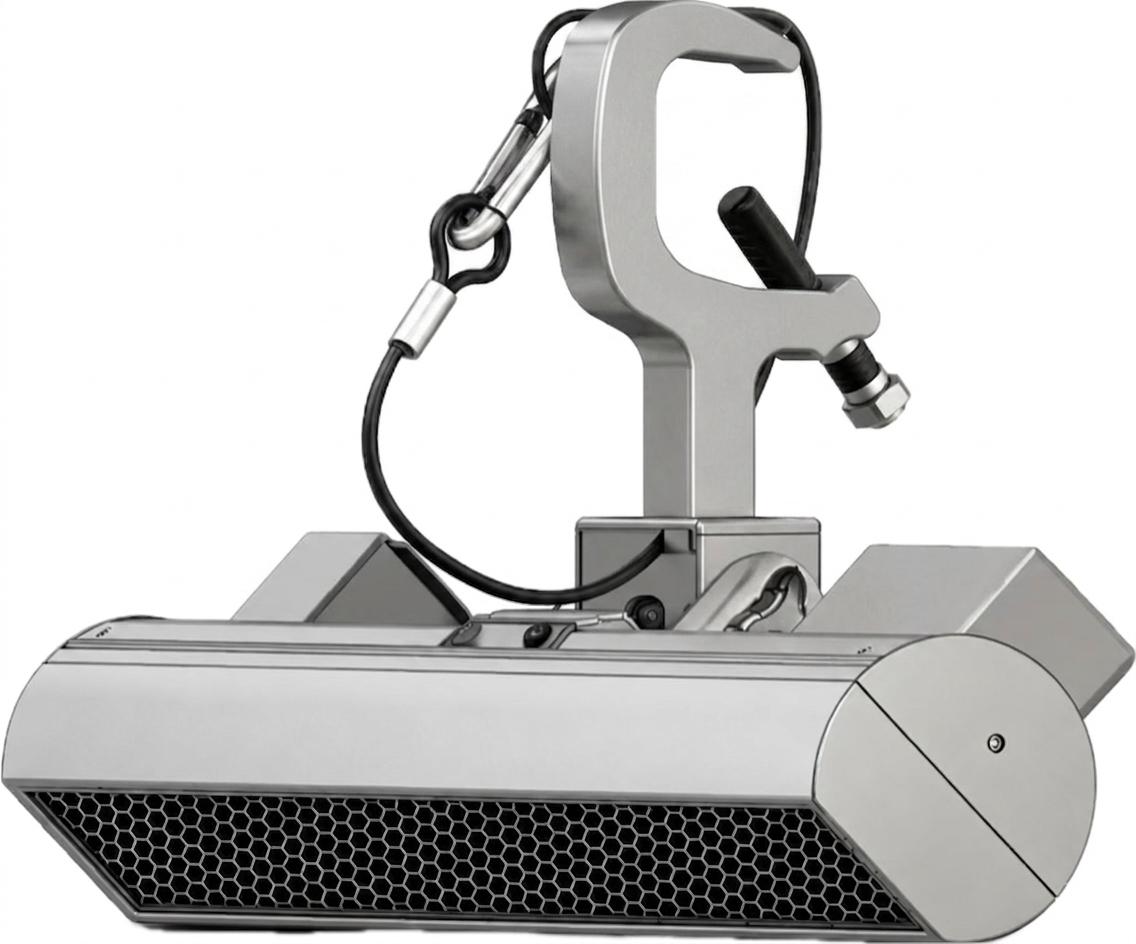

Designed for videoconferencing and general lighting applications, the MOD1 fixture delivers precision lighting where it matters. The fixture utilizes mid-power LEDs with >97 CRI to emit high-quality illumination. Weighing just 8 pounds (3.63-kg), this compact module features adjustable directional beam angles and offers spot or flood control options to suit a variety of lighting environments. In addition to specific single-color temperature options, the MOD1 is available in a Variable White model, supporting dynamic color matching.
Construction
The heat sink is made of 6063-T5 aluminum extrusion.
Fixture Body Finish & Mounting

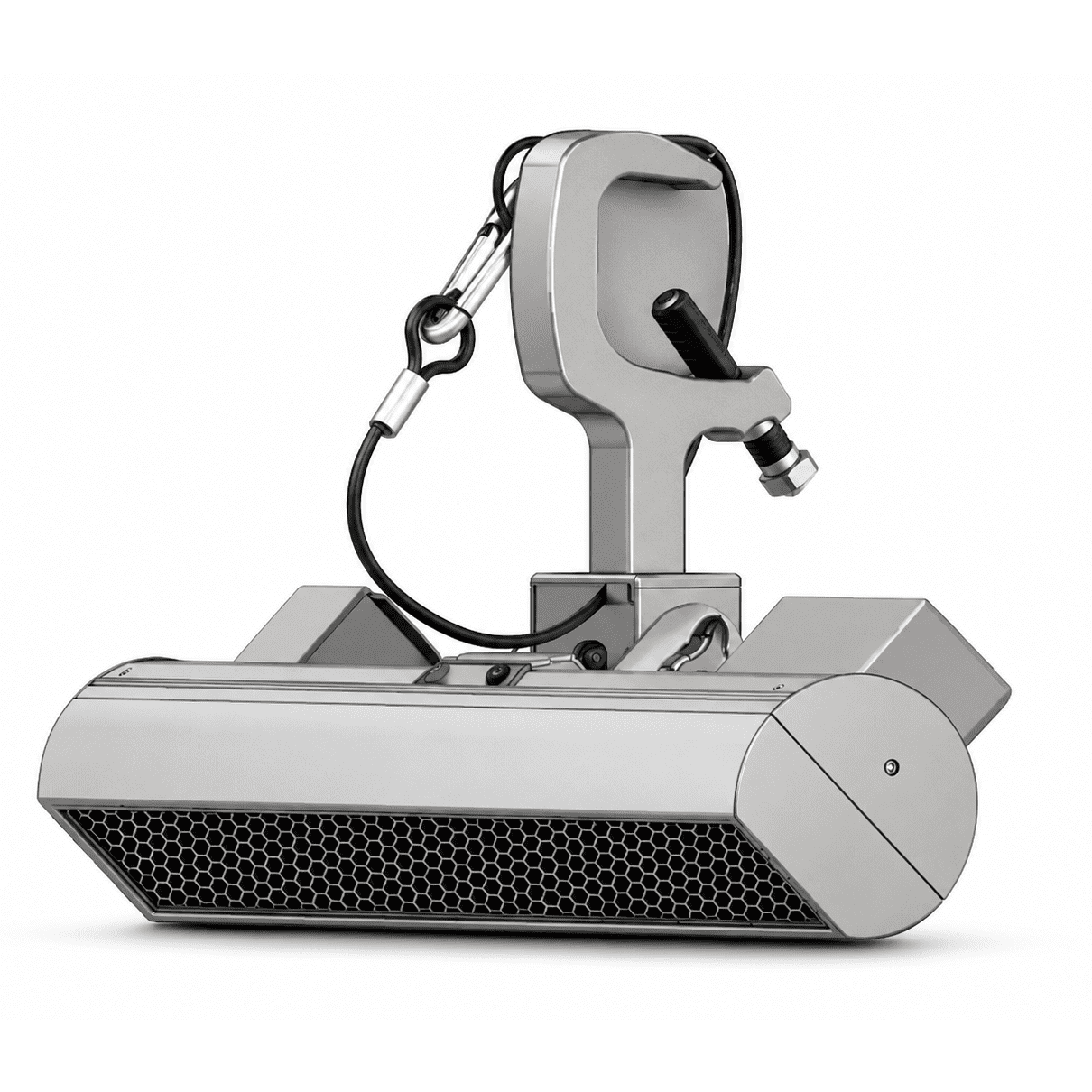

The module is available in a standard Black (BK) or White (WH) finish. Mounting configurations include a C-Clamp (TV) or Surface Mount (SM).
Electrical & Drivers
Operational voltage is universal, 120-277V. All LED drivers are high-frequency electronic, with a power factor >.90, THD <20%, and a Class A sound rating. Drivers are mounted directly in the fixture module housing, with power and control inputs located on the back of the fixtures.
Control & Dimming
The MOD1 supports a variety of dimming and control protocols, including 0-10V (Analog), DALI, DMX/RDM, and Low Voltage DMX. The DMX 512 Remote Device Management (RDM) option provides bi-directional communication for address, status, temperature, and life expectancy.
For low voltage control (120-230V applications), a 19-inch rack-mounted driver is available with up to 600W of power. Multiple drivers can be linked to scale for any size project.
LED Technology
The fixture emits high-quality illumination (>97 CRI) specifically suited for videoconferencing and general lighting applications. Each fixture module has a low power consumption of 32 watts. Available color temperatures include 3000K, 3500K, 4000K, 5000K, and Variable White (3000K-5600K). (Note: Variable White is available on DALI and DMX fixtures only.)
Directional Beam Angle & Optics
The fixture consists of one module. The module components are highly flexible and adjustable +/- 90 degrees. Each module comes with either a spot (S) or flood (F) beam control option.
Fixture Dimensions and Weight
-
Dimensions: Single Module: 6-in x 2-ft (inch only) / 22.52-in x 3.50-in dia. (572.05-mm x 89-mm dia.)
-
Fixture Weight: 8-lbs (3.63-kg)
(See shipping information chart for gross weights and dimensions.)
Certifications
MET
