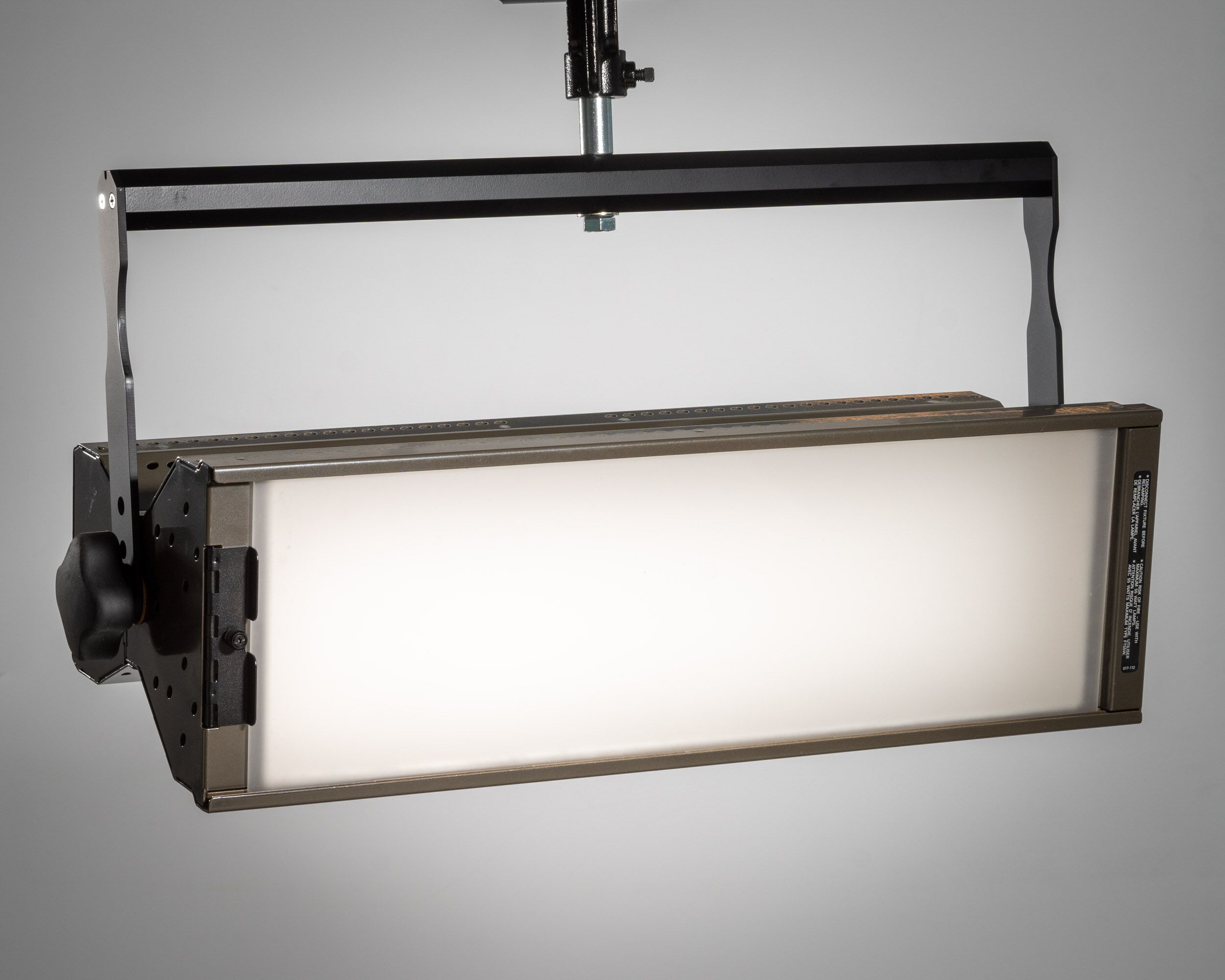

SeriesONE L1.3X LED Studio Fixture

With the same accessories and hardware as the L1.4X studio fixture, the L1.3X is an ideal complement to the L1.2X and L1.4X family of directional, soft lights. The cost-effective L1.3 non-variable white light comes standard with one phosphor plate that is either 3200- or 5600-degrees Kelvin. Like others in the SeriesONE family, the L1.3X delivers improved performance, with a richer color saturation of +97 CRI. Onboard DMX dimming control is standard, and users can continue to use existing SeriesONE accessories such as light intensifier and control screens. The new L1.3 light is well welcomed in response to increasing fluorescent component shortages.

Construction

14-gauge formed aluminum sheet metal construction. Heat sink is made of aluminum. The driver can be serviced without removing the light engine.

Electrical

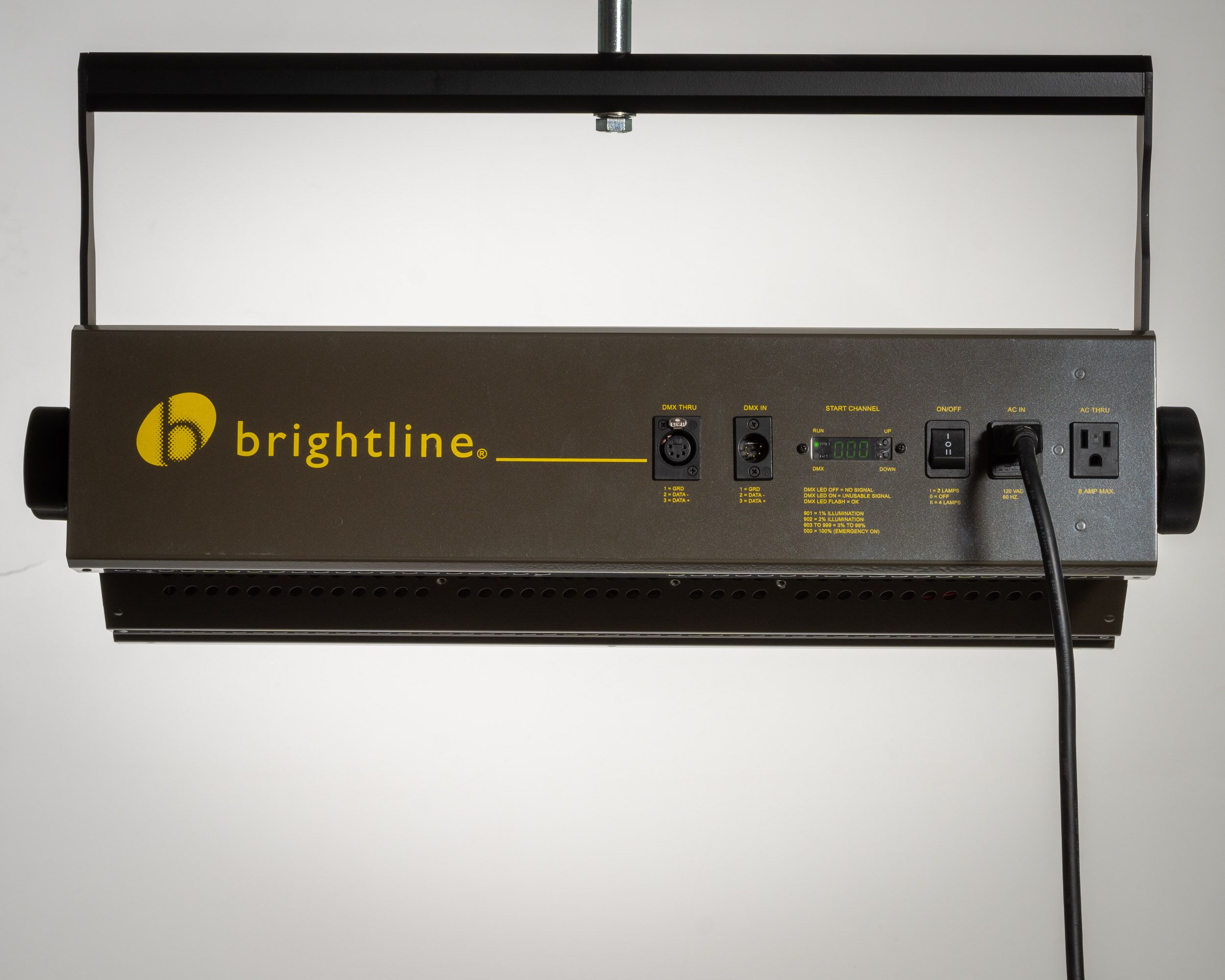

A removable 12-ft (3.7-m) power cord with a NEMA 5-15P plug is standard. Other plug types are available as options. The fixture is protected by an externally removable fuse with onboard spare. Power draw is 135 watts. Drivers All LED Drivers are high-frequency electronic, with a power factor >.94, THD <10%, and a Class A sound rating. LED Drivers are mounted internally to the fixture housing. The power and control inputs are on the back. The dimming protocol is DMX. Accessories • A variety of accessories are available. Black finish on accessories is standard, with custom color available on request. LED Technology • The fixture utilizes high CRI LEDs to emit high quality illumination (>97 CRI) for broadcast and videoconferencing applications.

Mounting

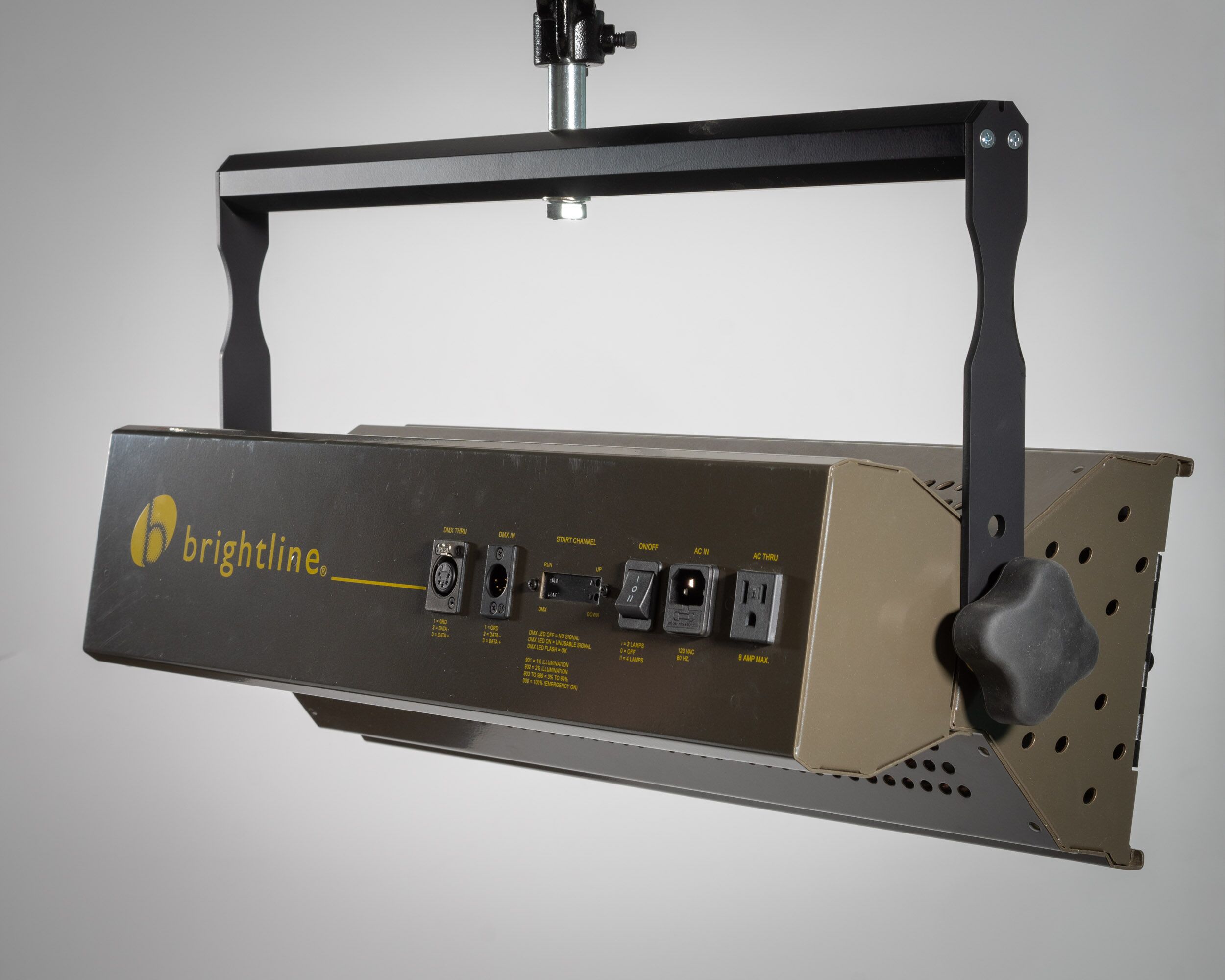

Fixture has a 10-gauge horizontal or vertical extruded aluminum yoke, with palm handles standard. Each fixture is supplied with a 2-inch OD C-clamp with an integral safety cable. Compact yoke also available.

Fixture Body

Finish Metallic cool bronze finish is standard, with custom colors available.

Fixture Dimensions and Weight

24.27-in (616.50-mm) wide x 12.49-in (317.16-mm) high x 9.12-in (231.66 mm) deep. Overall width of the fixture increases to 27.51-in (698.63-mm), with the palm handles included. Fixture Weight is 17-lb (7.1-kg).
