The LED VideoPlus line is a series of multi-directional lights that provide broadcast-quality video and task lighting within a high-tech, linear fixture. The video light provides vertical illumination for videoconferencing while the direct task light provides illumination of an entire room.
Available with single or double video lighting components positioned at a 45-degree angle, the task component emits a 55-degree beam angle. The beams overlap slightly, creating a combined beam of light.
Available in two-foot and four-foot lengths, the six-inch aperture in the VideoPlus provides a sleek look – whether in track, new construction drywall, acoustical lay-in or custom ceilings.
The VideoPlus line utilizes high-quality illumination with +97 CRI for videoconferencing and general lighting. Louvers, available in white or in a custom finish, provide complementary aesthetics for most architectural styles. The fixtures elegantly provide task and single or cross-key video light through one 6-inch aperture.

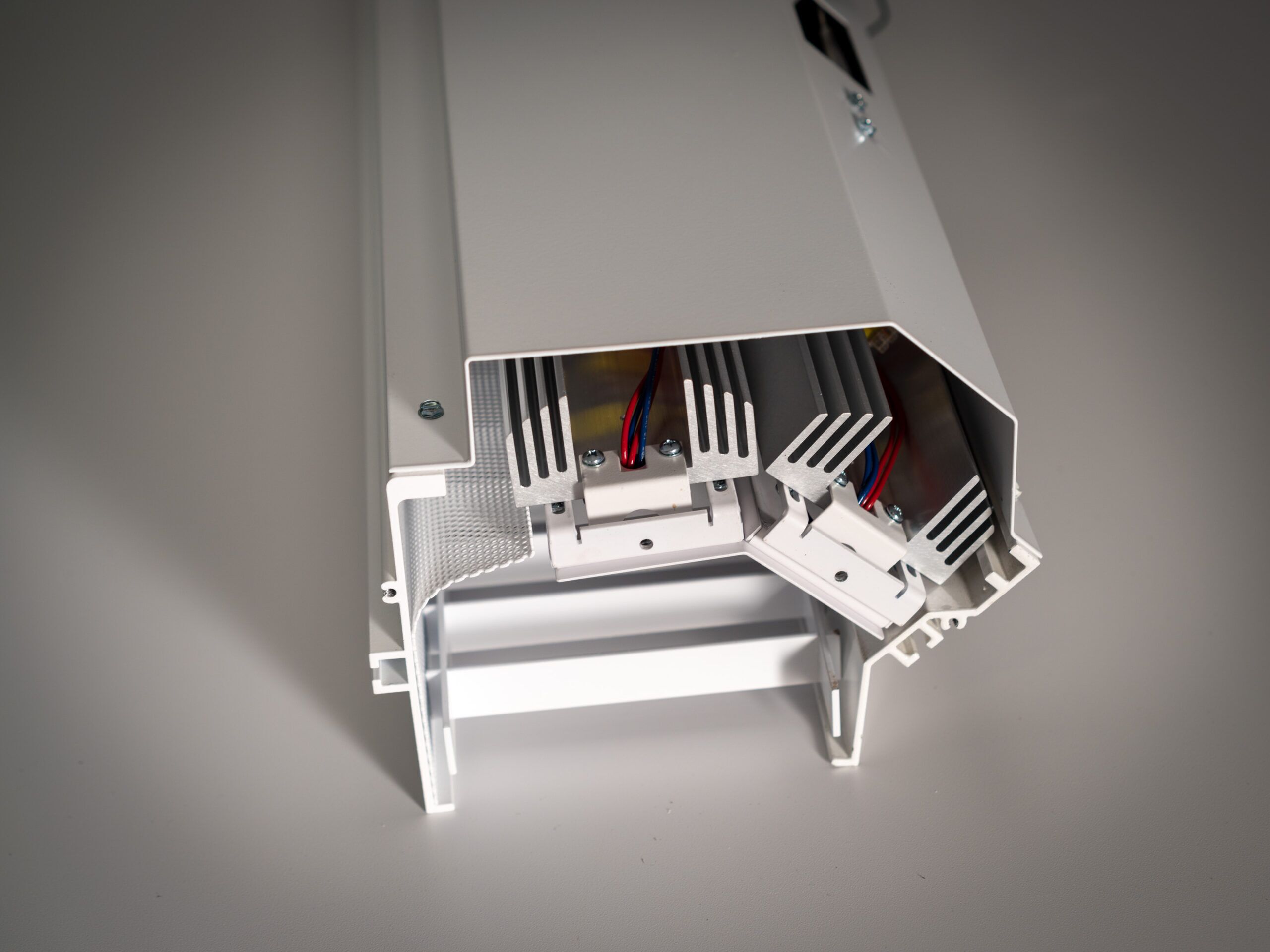

The fixture housing is made of 6063-T5 aluminum extrusions. The video light provides vertical illumination for videoconferencing while direct task light provides general room illumination. As an option, fixtures can be configured with task or video lights only.
Fixture Body Finish
Low-gloss Signal White finish (Ral #9003, smooth satin).
All drivers are high-frequency electronic, with a power factor >.95, THD <10%, and a Class A sound rating. Drivers are mounted in the fixture module housing. The power and control inputs are on the back of fixtures. Operational voltage is universal, 120 - 277V.
Low Voltage Control
19" Rack-mounted driver is available with up to 600w of power. Multiple drivers can be linked for any size project. Low voltage control available for 120-230V applications.
Power Over Ethernet Control
Fixture are available with PoE control nodes. Consult with factory for specification of complete PoE systems. PoE control available for 120-230V applications.
The fixture utilizes mid-power LEDs with high-quality illumination (>97 CRI) for videoconferencing and general lighting applications. Each 2-foot fixture has a power consumption of 32 watts per channel, each 4-foot fixture has a power consumption of 64 watts per channel.
Directional Beam Angle
The two video components are positioned at a 45° angle. The task component emits a 55° beam angle. The beams overlap slightly, creating a combined field of light.

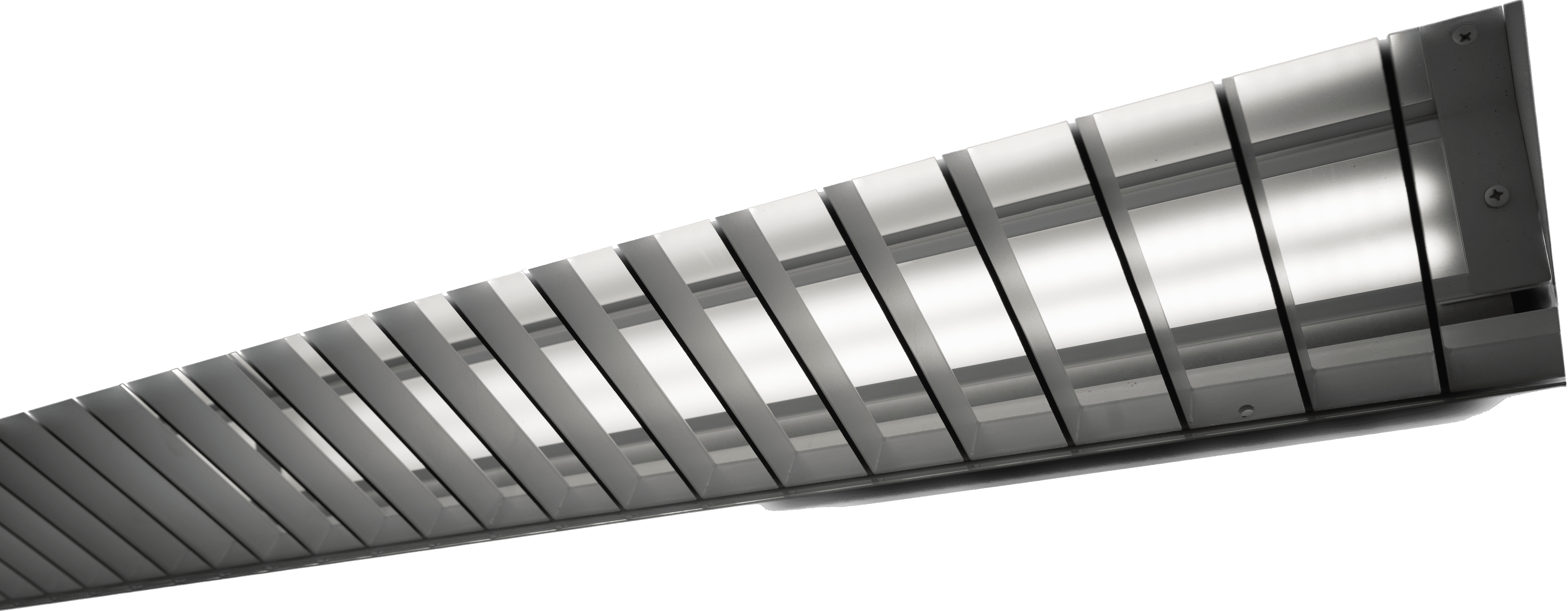

Louvers provide complementary aesthetics to most architectural styles. Louvers available in white or custom finish. Glare reduction filter is integral to the fixture. 45°-angle mounting panel is available for 2-ft fixtures only.
Fixture Dimensions, Aperture, and Weight
- Inch 23.75-in x 9.85-in x 7.50-in (603.25-mm) x (248.92-mm) x (190.50-mm)
- Aperture: 5.00-in x 23.55-in (127.00-mm) x (598.17-mm)
- Fixture weight: 30-lbs* (13.61-kg)
- Inch 47.75-in x 9.85-in x 7.50-in (1212.85-mm) x (248.92-mm) x (190.50-mm)
- Aperture: 5.00-in x 47.55-in (127.00-mm) x (1207.77-mm)
- Fixture weight: 60-lbs* (27.22-kg) *Weight provided is for Double VideoPlus configuration; consult factory for weights for other configurations. Weight is approximate. See shipping information chart for gross weights and dimensions.
Shipping Weights and Dimension (.pdf)
Report of Test
- LLIA002210-001 (.pdf)
- LLIA002210-001A (.ies)
- LLIA002210-001B (.spdx)
- LLIA001246-001 (.pdf)
- LLIA001246-001B (.spdx)
- LVP_2-ft_TASK_35K (.ies)
- LVP_2-ft_VIDEO_35K (.ies)
- LLIA002210_Driver 1_Brightline_ENERGY STAR TM-21 Calculator (.xlsx)
- LLIA002210_Driver 2_Brightline_ENERGY STAR TM-21 Calculator (.xlsx)
