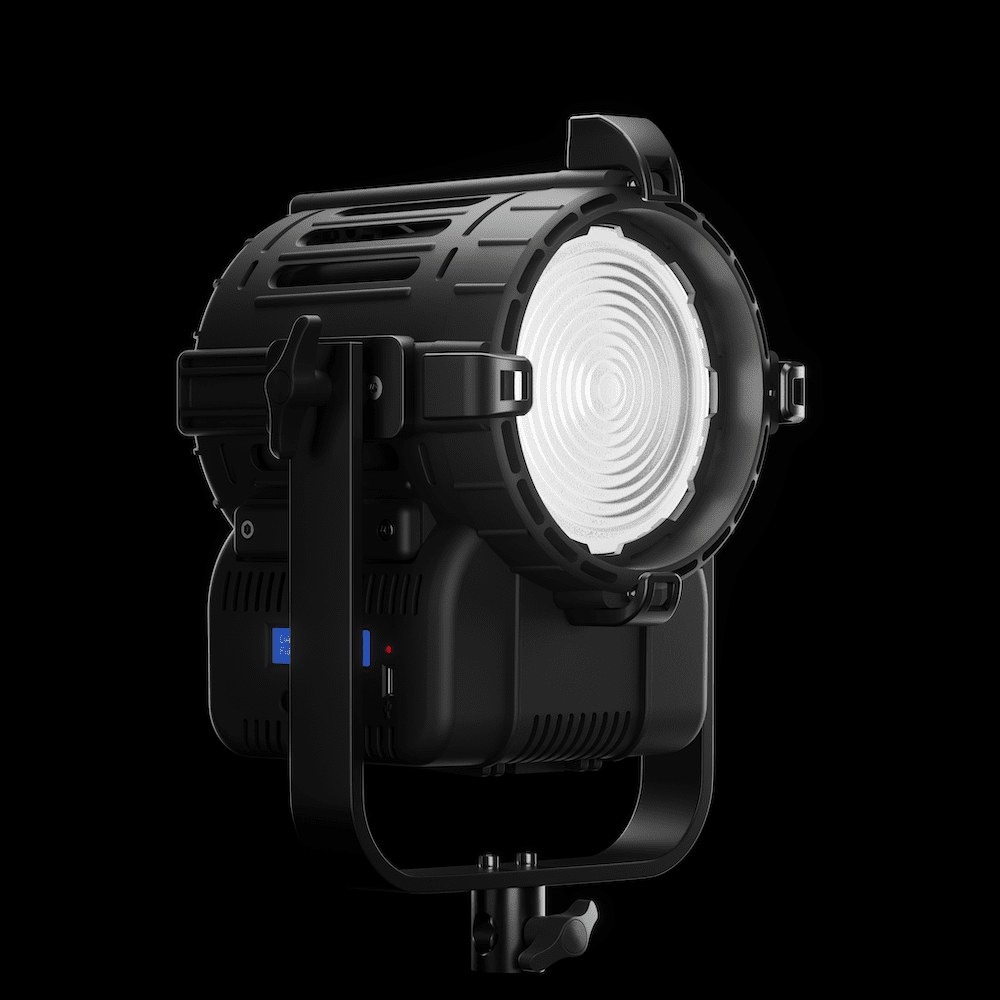

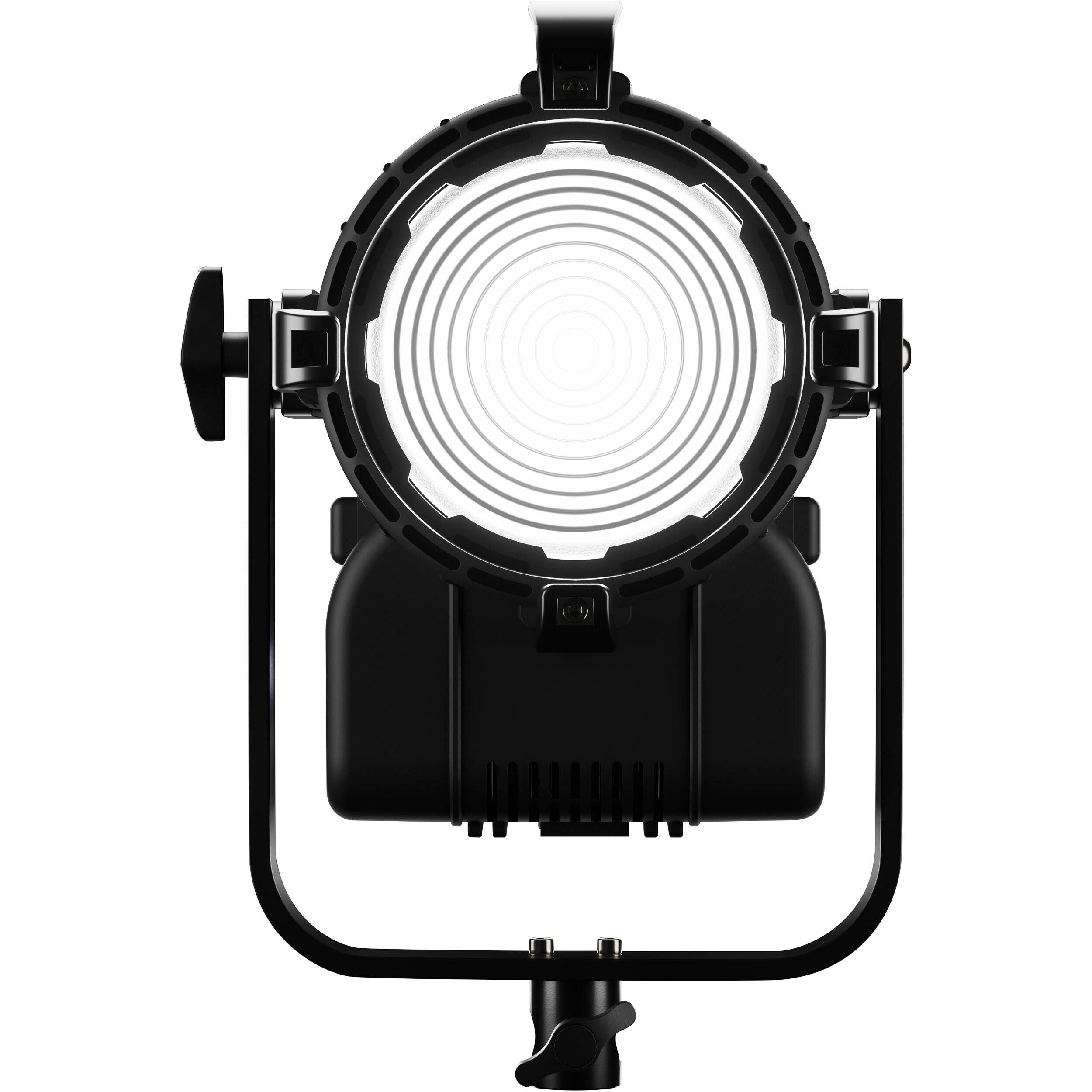

Lupo DayLED Studio Fixture (LL1000 Pro)

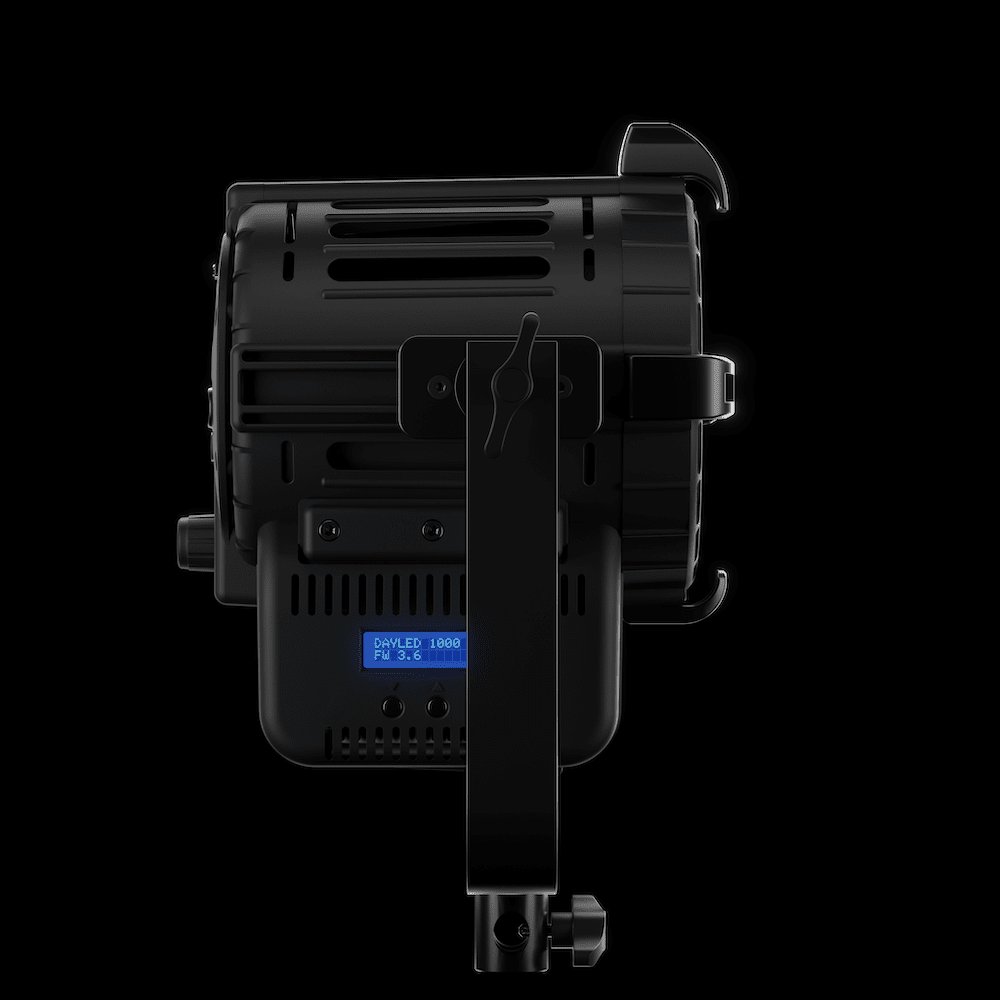

The LL-1000, like all Lupo LED fresnels, features exceptional color rendering thanks to the use of LEDs with exclusive True Color technology. The fresnels offers a host of features and settings to make production easier for professionals. A USB port enables users to update the latest firmware on the fixture. A Powercon in and out connector for 90V/240V power supplies provides the ability to connect several Fresnels in series to the mains. With a single socket users can connect several lights together. A digital display allows the operator to visualize the light intensity and DMX channels.

Construction

Fixture body made out of carbon fiber, matte black finish.

LEDs

50,000-hour rated life; available in 3200°K or 5600°K, or Variable White; power draw 60-, 110- or 220-watts with 0-100 dimming and sensor to detect LED temperature.

Fresnel Lens

Lupolux 650 Pro fixture lens is 4.7-in (120-mm). Lupolux 1000 Pro fixture lens is 5.9-in (150-mm). Lupolux 2000 Pro fixture lens is 79-in (200-mm).

Control

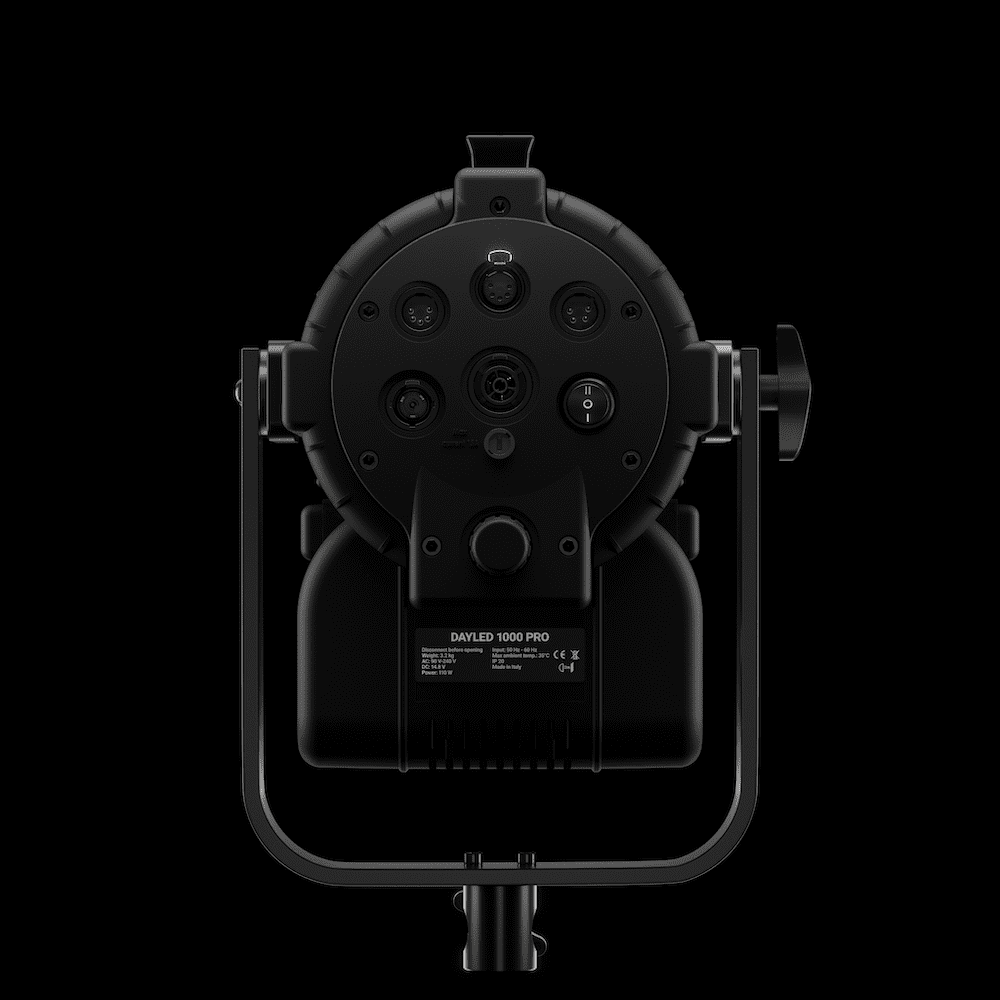

DMX-512 0-100% dimming in and out with standard XLR 5-pin connectors; on-board manual dimming 0-100%; and 4-pin connection for battery operation. RDM enabled.

Power

Extremely low power consumption (60-, 110- or 220-watt) and high light efficiency (equivalent to 650-, 1000- or 2000-watt tungsten), 90V to 240V; 60-, 110- or 220-watt power draw. Power Con in and out. 9.8-ft (3-m) Power Con to edison included.
