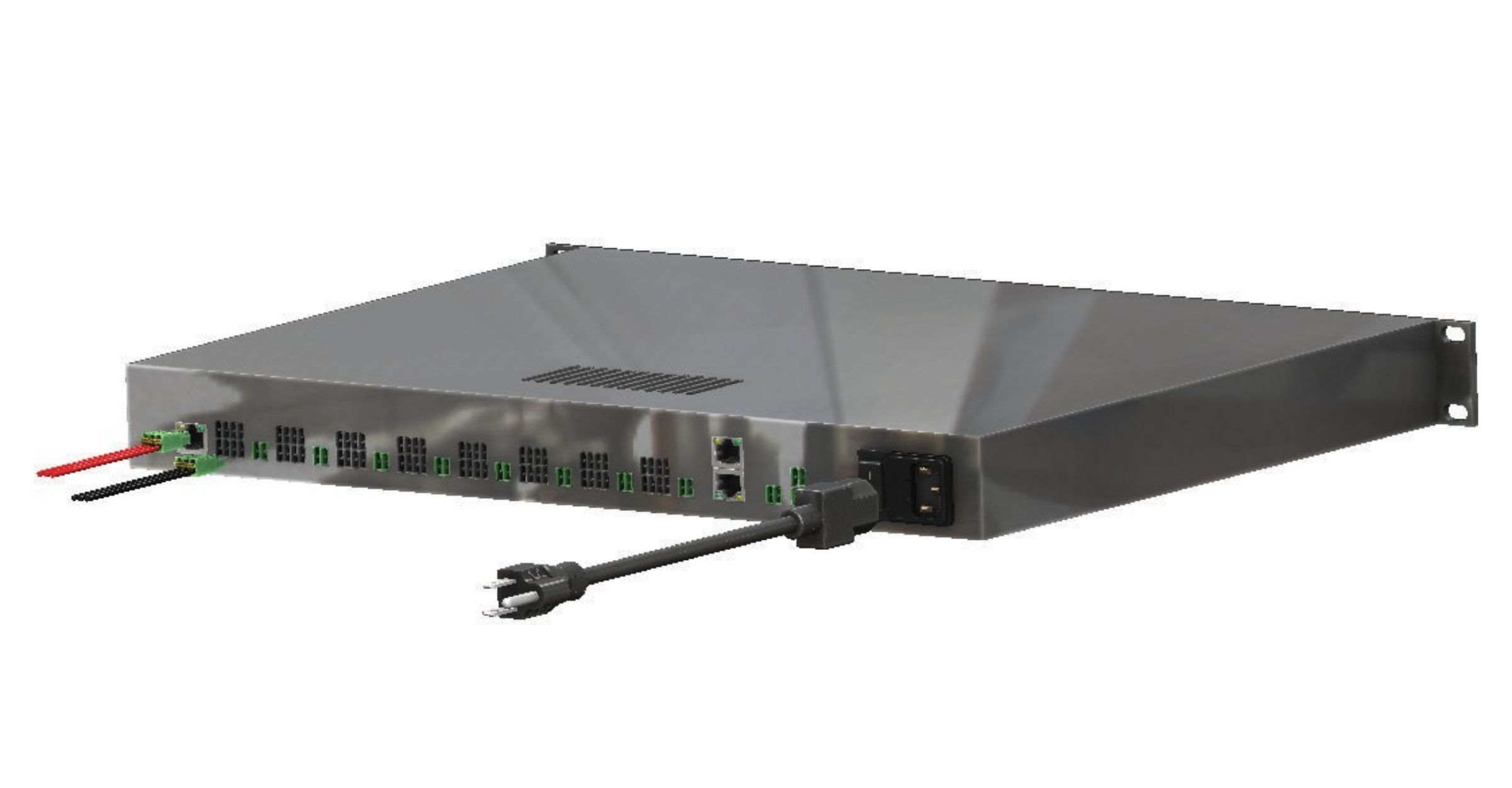

6060 Power Driver Low Voltage Control

Elevate your lighting setup with our 6060 Power Driver Low Voltage Control. This remote power driver delivers exceptional performance with a maximum output power of 600W and 32 customizable LED outputs. Experience precise control through 32 DMX channels and a wide dimming range from 0.01% to 100%. Its compact 1U 19-inch rack design ensures seamless integration, and with CE and UL certifications, you can trust in its quality and safety.

Product Description

Remote power driver, 600W, DMX control, up to 32 channels, constant current, 32 x 48V outputs, 1U 19-in rack.

Input Characteristics

Nominal 120 -230V (UL), 6.3A at 120V/60Hz or 5A at 230V/50Hz maximum current, input frequency of 50-60Hz, power factor >0.90, THD at full load is <20%, 91.8% efficient at full load.

Output Characteristics

Maximum LED output power is 600W, 32 LED outputs, 200-1050mA programmable current range in 50mA steps via display, LED output range is 2-48V.

Control Characteristics

Up to 32 DMX channels, .01%-100% dimming, three dimming curves: logarithmic (default), linear or square, connectors for each channel provided by Brightline.

Weights and Dimensions

  • 19.0- x 12.8- x 1.75-in (482.6- x 325.0- x 44.5-mm)
  • 13.9-lb (6.3kg)
  • 1U - 19-in (482.6-mm) rack

Certifications & Warranty

  • CE Directives 2004/108/EC, 2006/95/EC, EN 60929 Annex E
  • UL Listed
  • 3-year limited warranty

Part Number Configurations

  • CTRL-RPD-LV-6060-FLXT for Flex-T or VideoPlus
  • CTRL-RPD-LV-6060-LST6 for Stealth-T
  • CTRL-RPD-LV-6060-BL16 for BL.16
  • CTRL-RPD-LV-6060-LVCI for LVCI
