Flex-T

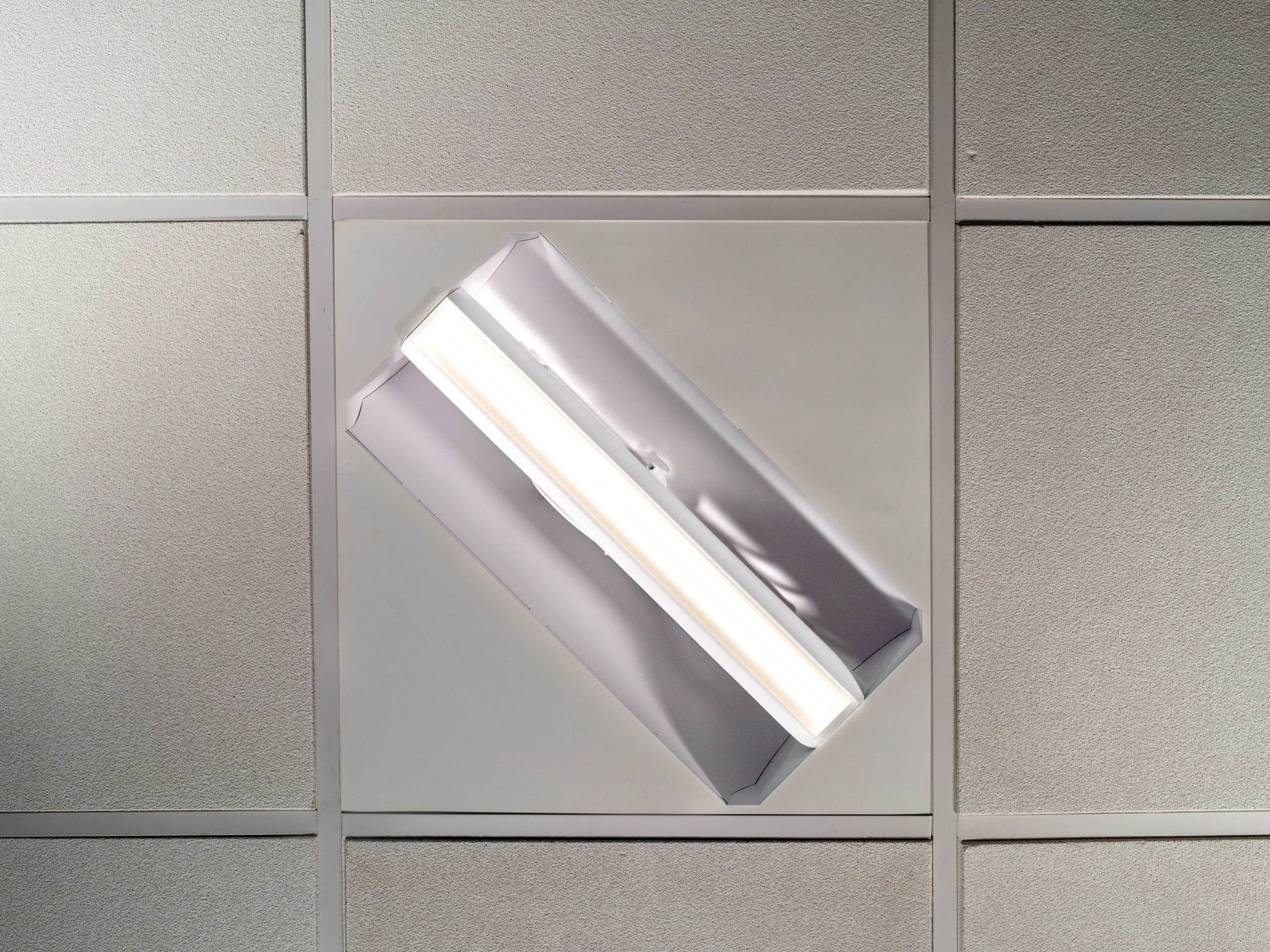

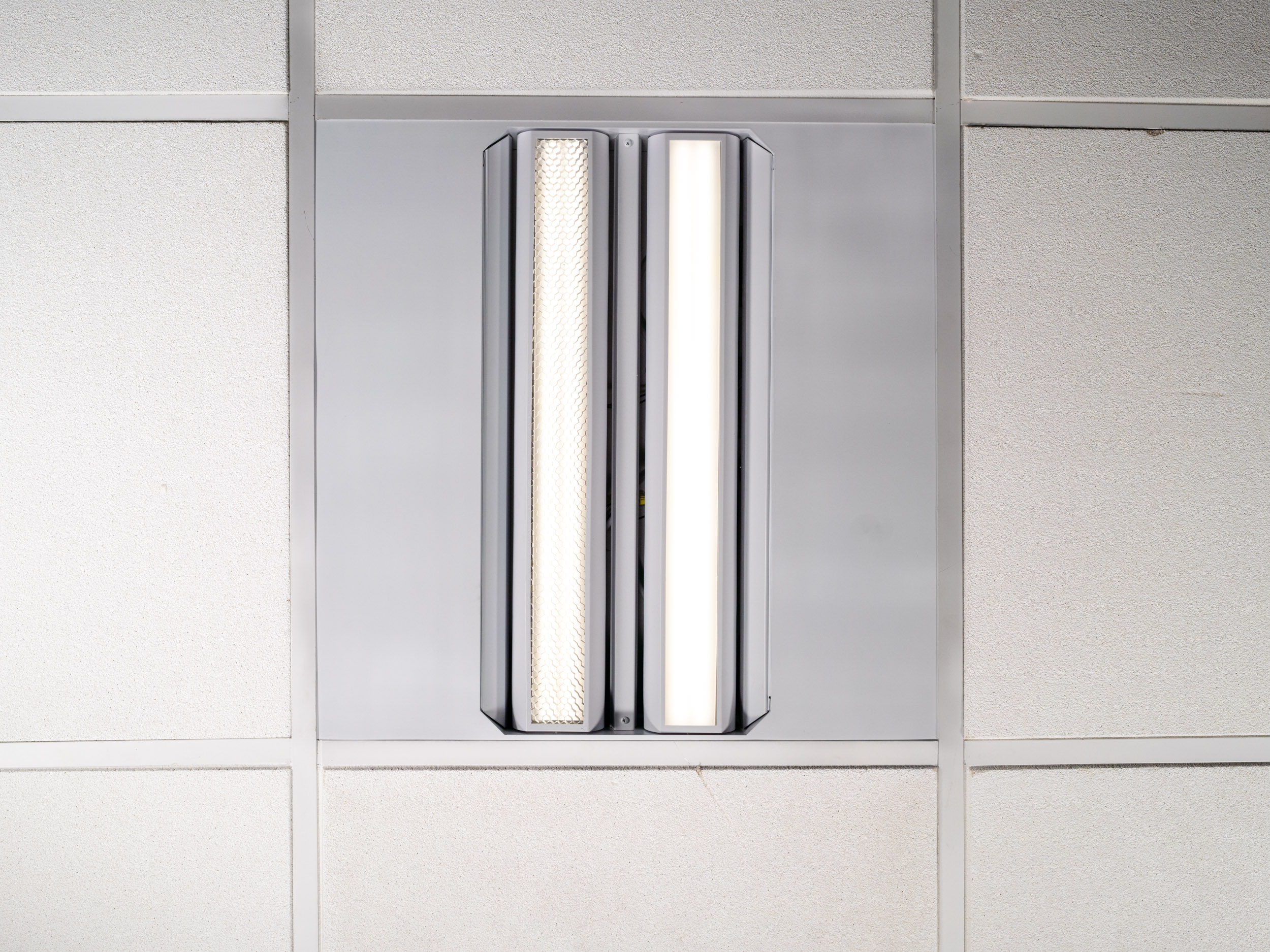

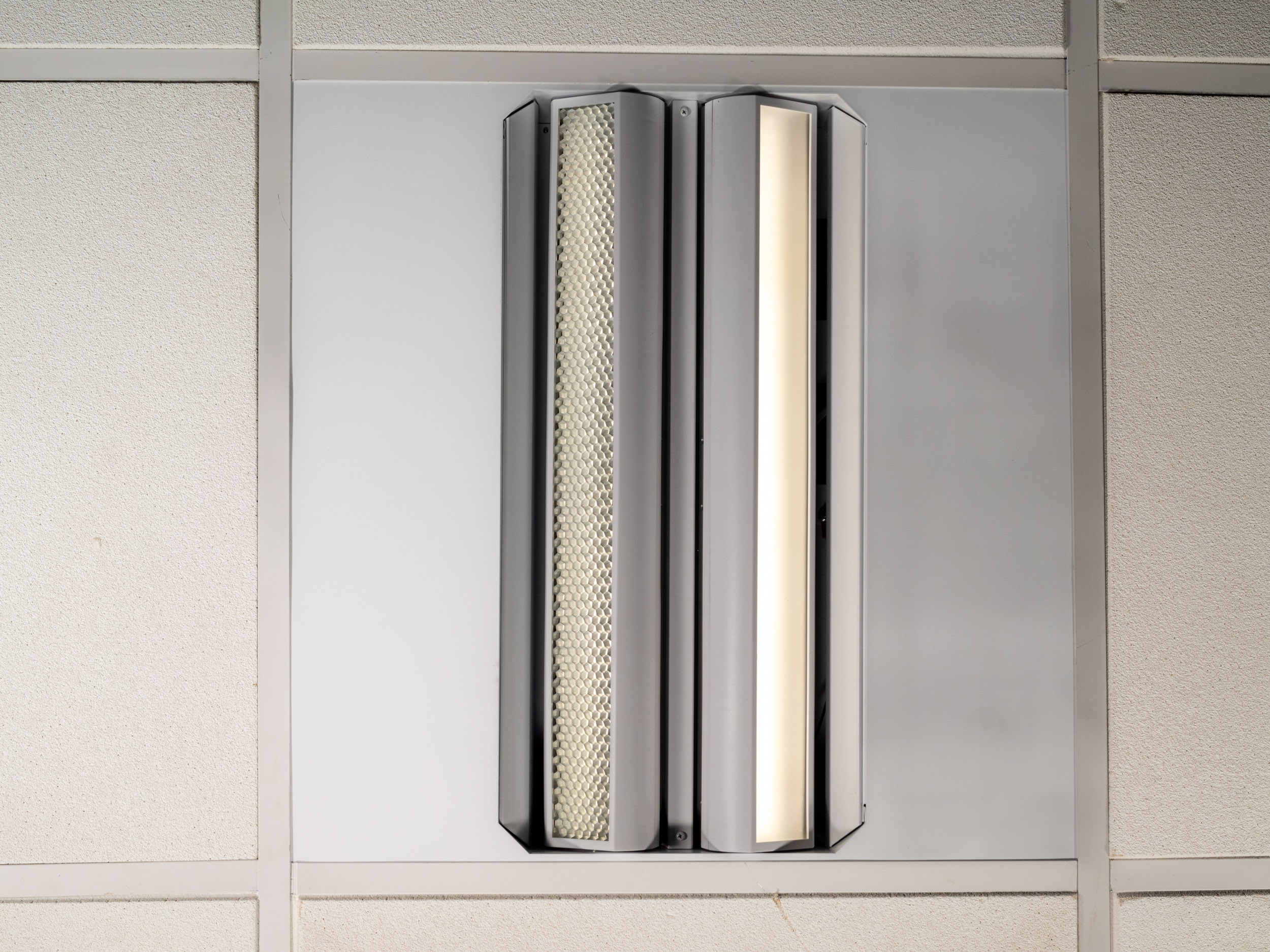

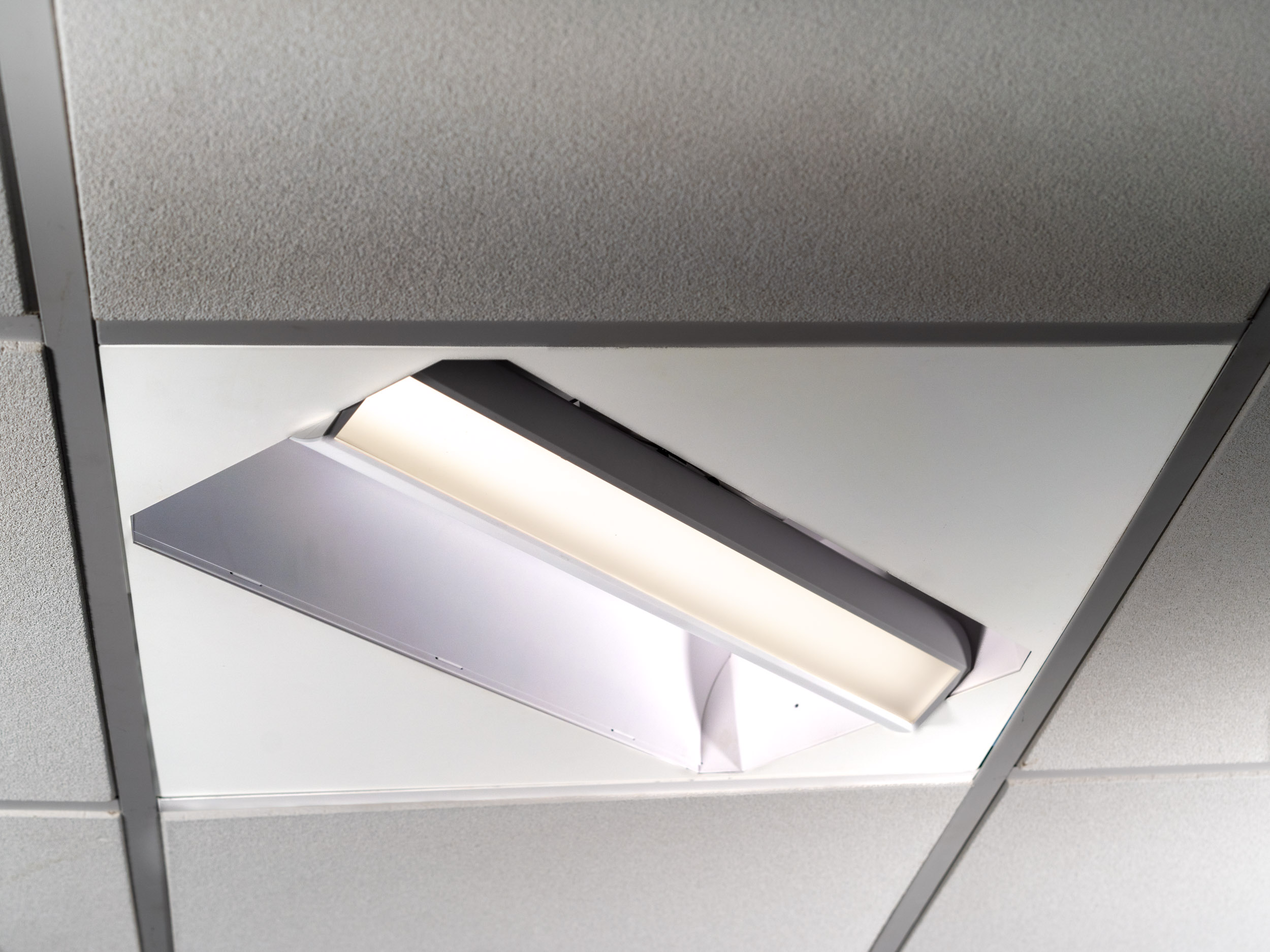

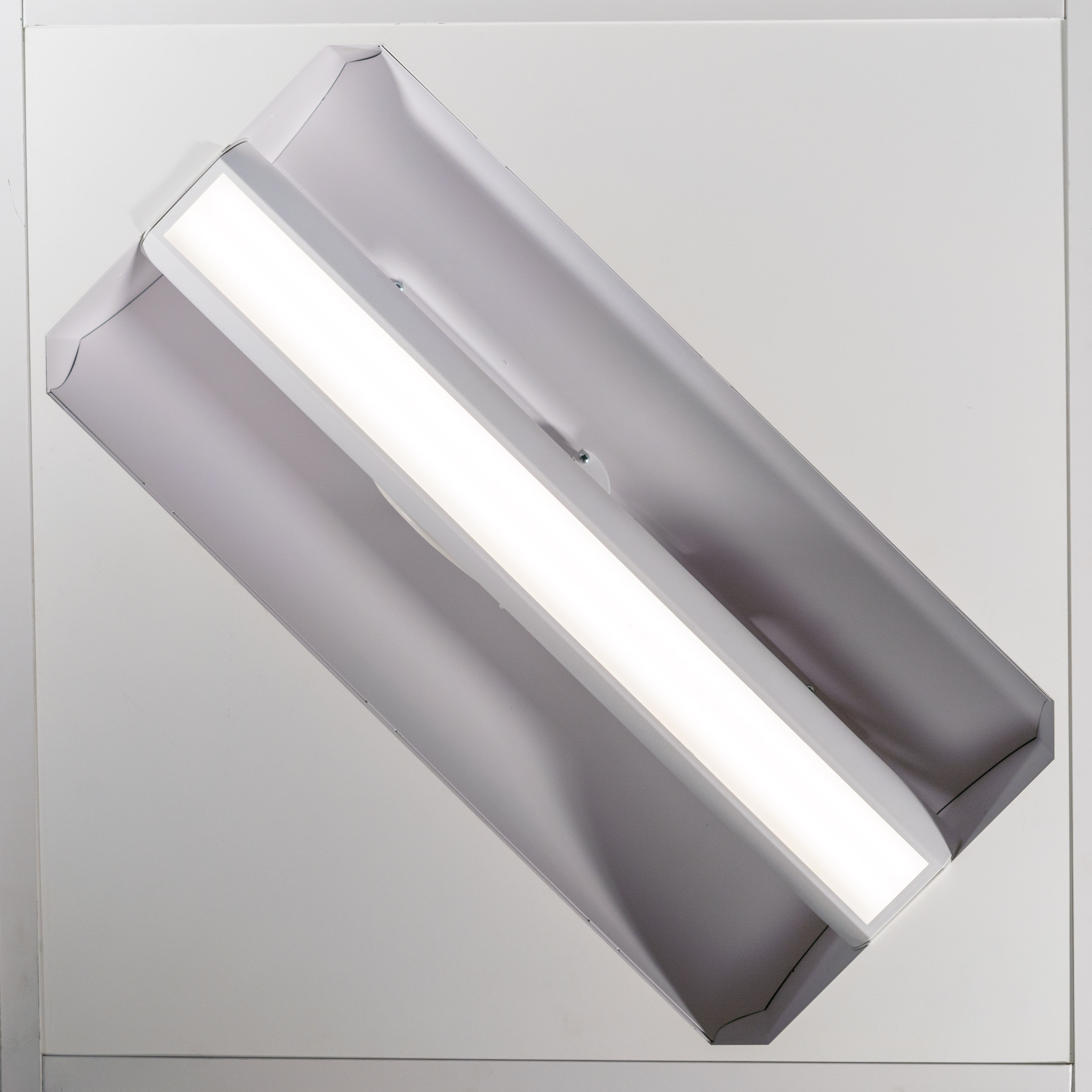

The versatile Flex-T lights can be installed in any type of ceiling and bring broadcast-quality lighting to vast range of video environments. The Flex-Ts’ patented articulation feature makes them the only fixtures that can be precisely rotated into a desired position during conferencing and then returned flush to the ceiling between sessions or for general task lighting.

Fixtures are available with manual articulation and a range of dimming protocols for applications including business and governmental videoconferencing, e-learning, telemedicine, video streaming, and non-traditional studio environments.

Flex-T’s feature high-quality illumination (> 97 CRI). Each module comes with a flood or spot beam control option and has a power consumption of 32 watts. Flex-T fixtures provide extremely high-quality, multi-task, multi-directional lighting in a design that’s easy to install in any type of ceiling. The Flex-T’s latest innovations include RDM (remote device management) with DMX-512 control and variable white color.

Construction

The fixture housing is made of formed, cold-rolled sheet steel.  The heat sink is made of 6063-T5 aluminum extrusion.

Fixture Body Finish

Low-gloss Signal White finish (Ral #9003, 20% Gloss) is standard, with custom colors available.

Drivers

All drivers are high-frequency electronic, with a power factor >.95, THD <10%, and a Class A sound rating. Drivers are mounted in the fixture module housing. The power and control inputs are on the back of fixtures. Operational voltage is universal, 120 - 277V.

RDM Control

DMX 512 Remote device management available with bi-directional communication for address, status, temperature, and life expectancy.

Low Voltage Control

19” Rack-mounted driver is available with up to 600w of power.  Multiple drivers can be linked for any size project. Low voltage control available for 120-230V applications.

Power Over Ethernet Control

Fixtures are available with PoE control nodes.  Consult with factory for specification of complete PoE systems. PoE Control available for 120-230V applications.

LED Technology

The fixture utilizes mid-power LEDs with high-quality illumination (>97 CRI) for videoconferencing and general lighting applications. Each fixture module has a power consumption of 32 watts.

Directional Beam Angle

The module components are adjustable +/- 55 degrees.

Fixture Carriage (Module)

One module fixture is available.  Each module comes with a spot or flood beam control option.

Fixture Dimensions and Weight

Inch Panel: 2ft x 2ft

23.75 X  23.75 X 7in

(603.25 x 603.25 x 115.3mm)

Metric Panel: 600mm x 600mm

595 x 595 x 115.3mm

(23.43 X  23.43 X  7in)

Fixture Weight (1 module): 16.00 lbs (7.26kg)

Fixture Weight (2 module): 24.51lbs (11.12kg)

Inch Panel: 1ft x 2ft (only available with 2 modules)

11.75 X  23.75 X  7in

(298.45 x 603.25 x 115.3mm)

Metric Panel: 300mm x 600mm

298 x 595 x 115.3mm

(11.71 X  23.43 X  7in)

Fixture Weight: 21.45lbs (9.73kg)

Single Module: 6in x 2ft (inch only)

(5.75 X 23.75 X  7in)

(146.05 x 603.25 x 115.3mm)

Fixture Weight: 9.50lbs (4.31kg)

See shipping information chart for gross weights and dimensions.

Certifications

MET
