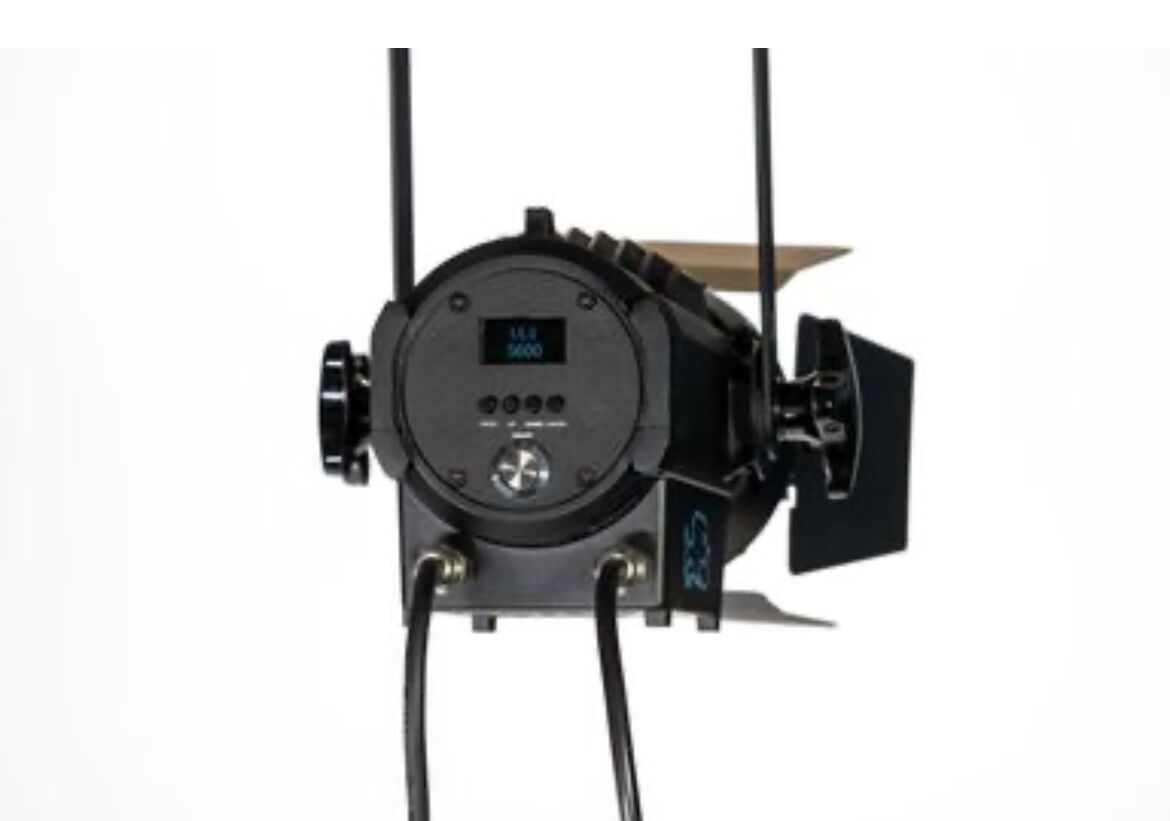

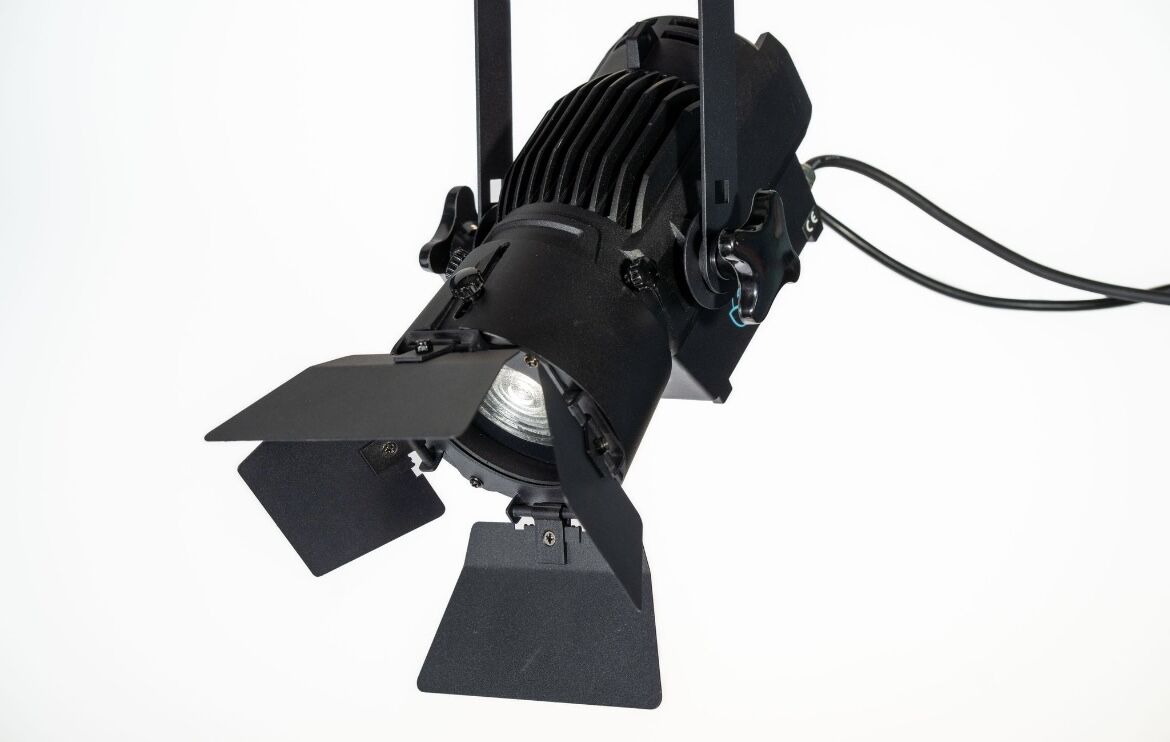

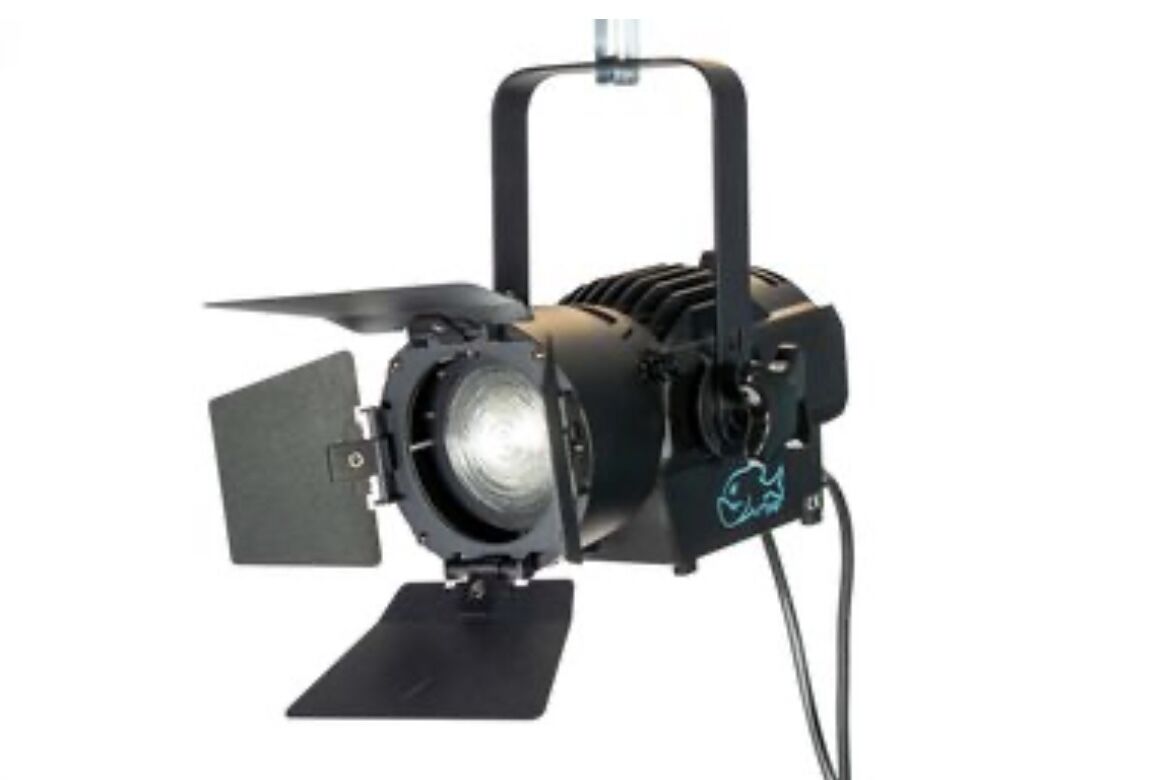

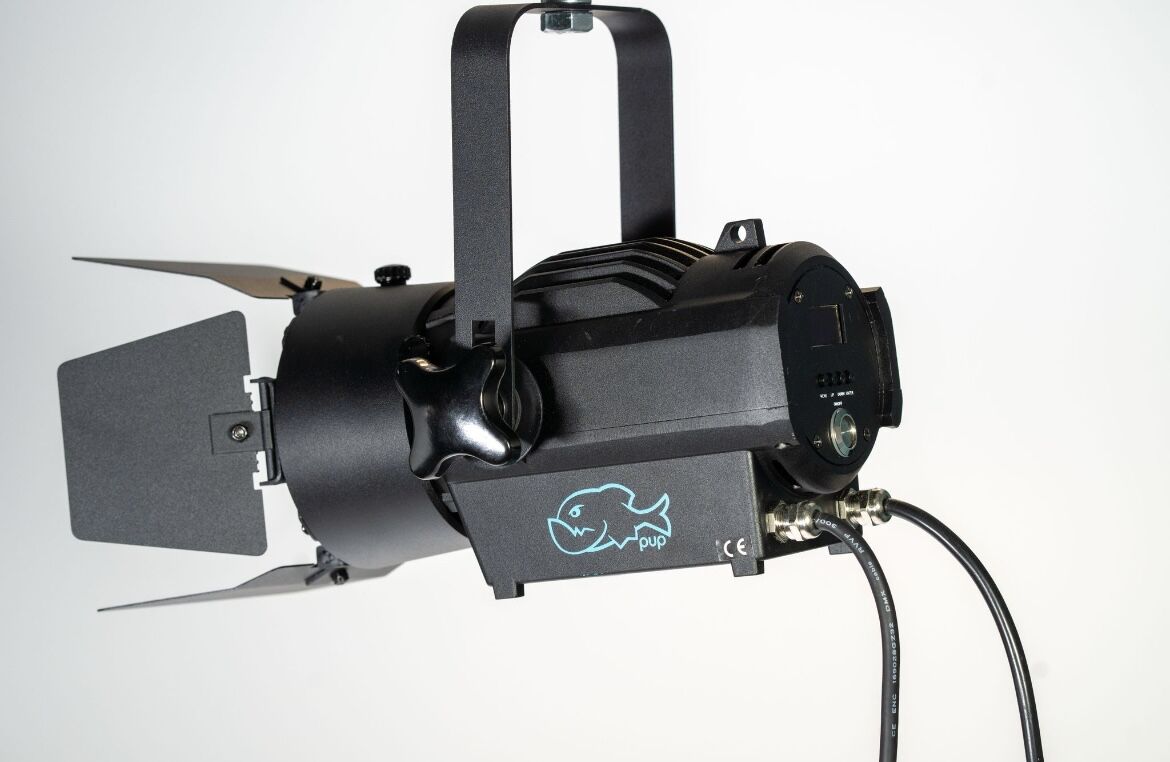

Pup Fresnel
PUP/5 is a high-definition full color spectrum design with Brightline’s noise-free, fan-less cooling system integrated into a die-cast aluminum alloy housing. The system is ideal for studio and television production studios where noise reduction is required. The 60F-RGBAL features a 60-watt 5-in-1 LED RGBAL chip delivering the brightest output and boldest rendering of color.
PUP/2 is a high-definition tunable white design with Brightline’s noise-free, fan-less cooling system integrated into a die-cast aluminum alloy housing. The system is ideal for studio and television production studios where noise reduction is required. The 55D-VW features a 55-watt 2-in-1 LED Cool White + Warm White (3200K to 5600K), 95+ CRI tunable white LED chip-on-board.
Light Source
- PUP/5 Model: 1 x 60-watt 5-in-1 LED (RGBAL)
- PUP/2 Model: 1 x 55-watt 2-in-1 LED (3200K – 5600K)
- CRI ≥95+
- Flicker free operation for broadcast TV and film
- Life Span: 50,000-hour (chip rating may vary depending on several factors including, but not limited to: environmental conditions, power/voltage supply, usage pattern (on-off cycling), control and dimming)
Optics
- Manual high-resolution and precise optic zoom function adjust field angle from 30° to 50°
- 360° rotatable tube with barn door panels
- Manual focus
Framing System
- 4 independent and fully adjustable barn door panels
Color System
- 60F-RGBAL Model: RGBAL color mixing – pure and even coverage
Preset Programs 60F-RGBAL only
- 5 preset colors – built in dynamic color program
Dimming System
- 0-100% smooth linear LED dimming
Power Supply
- Electronic supply with active Power Factor Correction (PFC)
- AC100-240V 50/60 Hz
- 9-feet Power IN with fuse and ON/OFF Switch
- 60-watt power consumption – RGBAL
- 55-watt power consumption - VW
Control System
- PUP/5 Model: 7 DMX channels – Remote Device Management (RDM) enabled
- PUP/2 Model: Two 2-in-1 DMX channels – RDM enabled
- DMX512, In/Out or auto operation DMX recorder and edit function integrated
- Shielded input signal protection for stable signal without interference
- 5-pin XLR DMX connectors In/Out
Cooling System
- Advanced cooling fan-less system, aluminum heat sink with integrated copper heat pipe
- Efficient noise-free cooling system
- Constant temperature readout and management function with integrated thermal protection cut-off switch
Housing
- Die-cast aluminum alloy with powder coat body
Installation
- Single slide-adjust hanging bracket with safety attachment point
Operating Condition
- -25°C to 45°C ambient temperature
- IP20 protection
Compliance
- CE + FCC
- 2014/35/EU Safety of electrical equipment supplied at low voltage (L VD)
- 2014/30/EU Electromagnetic compatibility (EMC)
- 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
Unit and Pack Weight
- N.W. 6.3lbs. (2.9kg) G.W.: 7.7 lbs. (3.5kg)
Unit and Pack Dimensions
- Product Dimensions (L x W x H): 11.1" (282mm) x 7.9" (201mm) x 5.2" (132mm)
- Packing Dimensions (L x W x H): 16.0" (406mm) x 10.0" (254mm) x 8.3" (211mm)
