AV/720 Low-voltage/DMX Control

AV/720 Low-voltage/DMX Control

Brightline’s AV/720 low-voltage control system facilitates an easy-to-set-up lighting system for video applications. Using Class 2 wiring, the AV/720 Driver can control up to 600w of the below listed fixtures.

Individual Flex-T Modules 32w
Stealth T6 108w
Two-foot Channels of LVP 32w
Four-foot Channels of LVP 64w
LVCI 48w
Minnow 2 VW 56w
Pup 2 56w

Fixtures are provided with a 4-pin connector that connects to any of the cables listed below and to the AV/720.

CBL-16/4-10-LV
Low Voltage		 16/4 Power/Control Cable 10'
CBL-16/4-25-LV Low Voltage 16/4 Power/Control Cable 25'
CBL-16/4-50-LV Low Voltage 16/4 Power/Control Cable 50'
Note: the maximum distance from the AV/720 to a fixture is 100'

Fixture Programming

Brightline stand-alone systems are quoted with a DMX console and wall-mounted playback station. Utilizing the DMX console, or another device with DMX output, set each module to the desired dimming level and record as an individual scene. Up to 16 individual scenes can be recorded to the wall-mounted playback station.

LED Control Driver (P/N CTRL-RPD-LV-AV/720)

Input Characteristics

  • Input voltage: AC 120v – 230v
  • Input current: 6.3A max at 120V/60Hz

Output Characteristics

  • Output power: 600W max.
  • Adjustable output voltage: 2-48V

Control Characteristics

  • Control Channels: up to 40 DMX channels.
  • Pre-configured by factory
  • Dimming Curve – Logarithmic (default) / Linear

Certifications

  • ETL – US and Canada
  • CE
 Wall Mounted Playback Station (P/N CTRL-WS-LV-SR517)

Protocol: USITT DMX-512

Dimmer Channels: 512

Total Number of Scenes: 16 (2 banks of 8 scenes each)

Controls and Indicators: 8 Scene Select, Bank Select, Blackout, Record, Recall. LED indicator for all functions and DMX status

Recording: “Snapshot” from live console input

Record Lockout: Global Recording Lockout

Power: 12 - 16 VDC

Connectors: Plug in screw terminal

Power Supply: 12 VDC supplied by wall adapter.

Dimensions: 3.7- x 1.5- x 4.0-in (with face plate 4.77- x 4.69-in)

94.0- x 38.1- x 101.6-mm (with face plate 121.16- x 119.13-mm

Weight: 1-lb (0.45-kg)
Width: 19” (482.6mm)

Height: 5.37” (136.4mm)

Depth: 13.2” (335.3)

Weight: 16.75 lbs. (7.60kg)

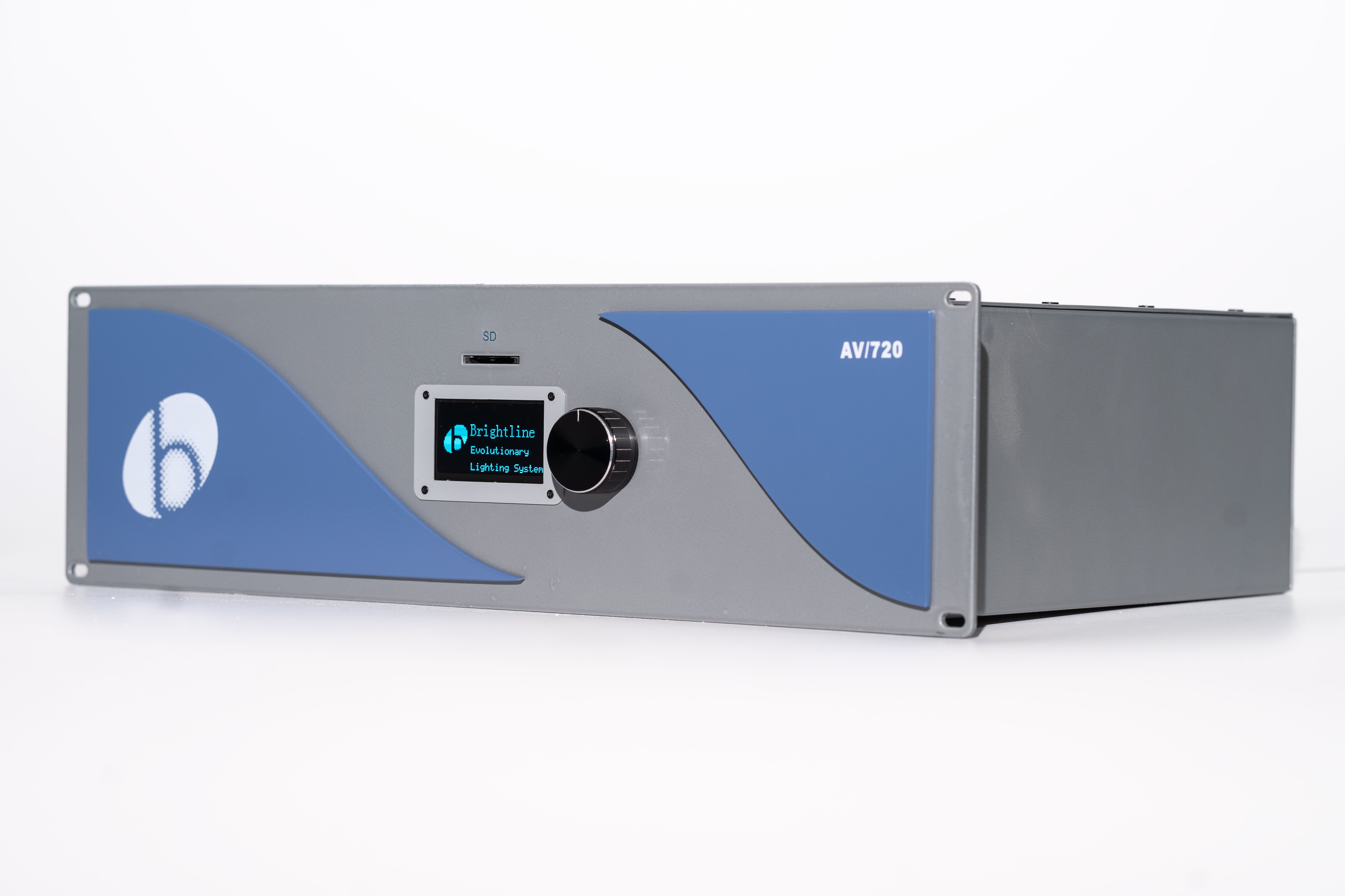

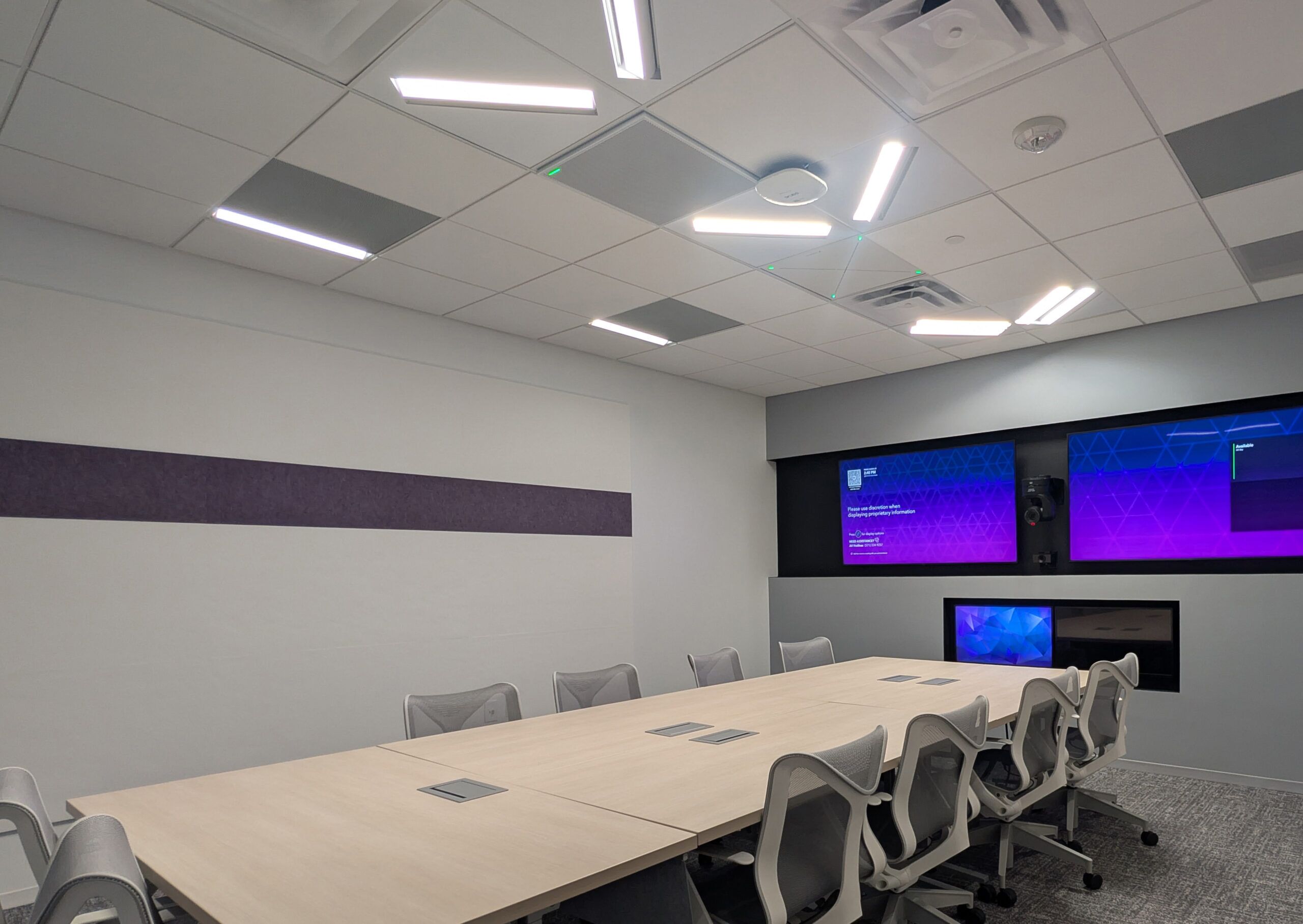

AV/720 Low-voltage/DMX Control

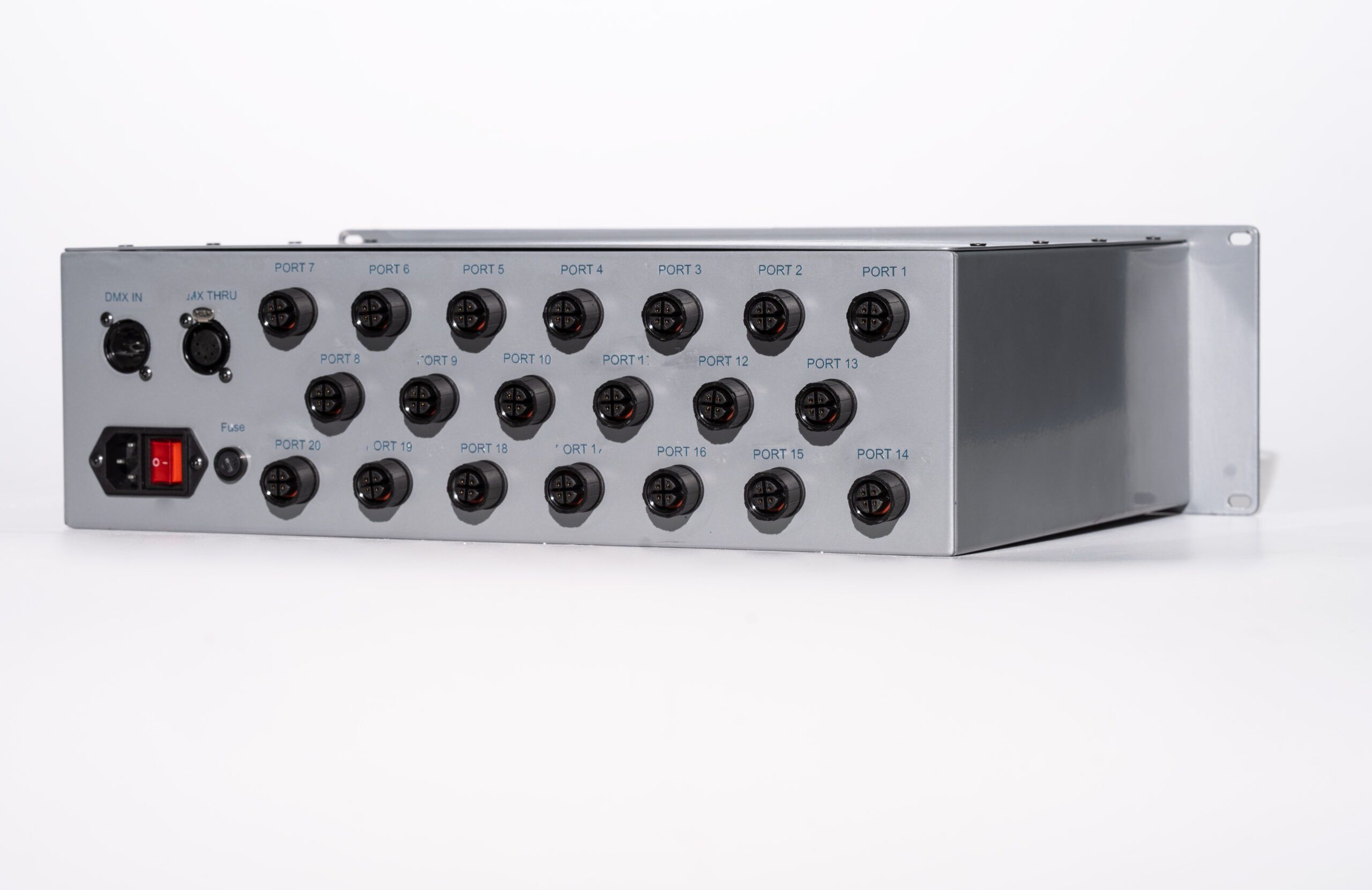

AV/720 Low-voltage/DMX Control

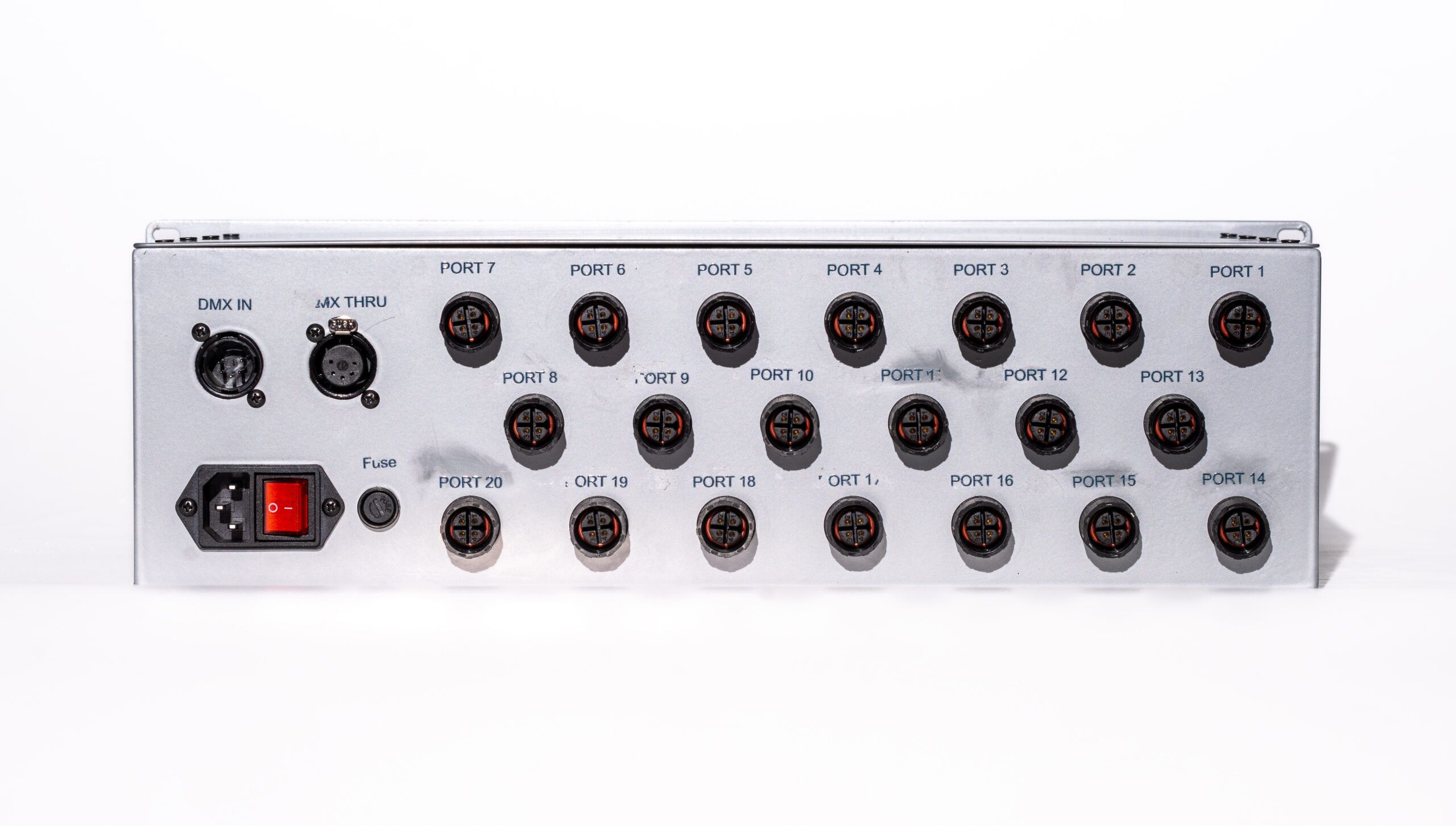

AV/720 Low-voltage/DMX Control - Image 3

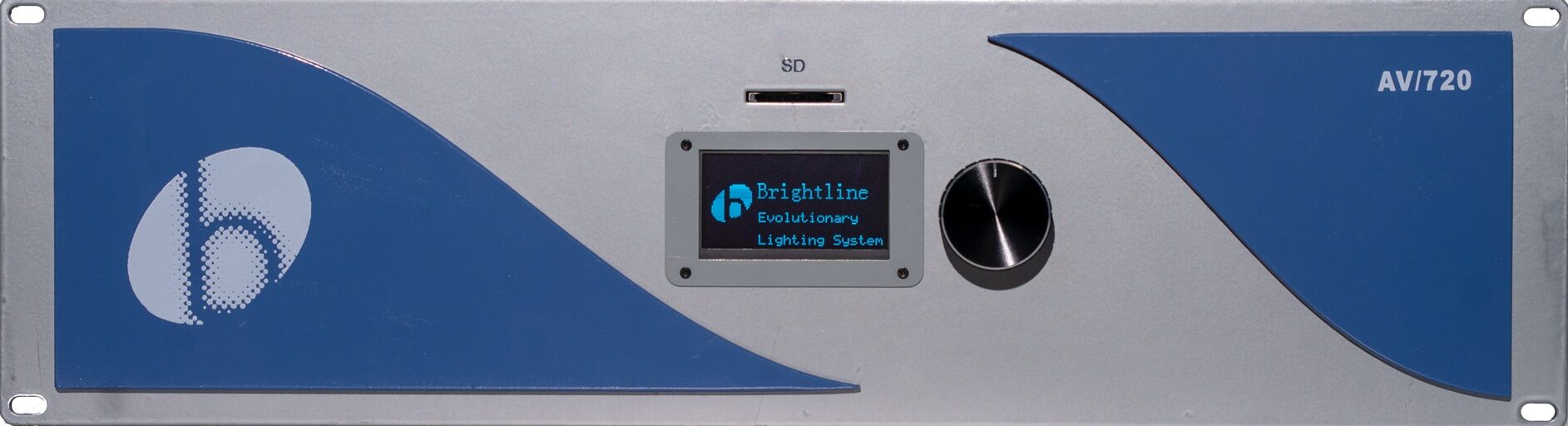

AV/720 Low-voltage/DMX Control - Image 4
